FULL SPECIFICATION
Number of Channels 2
Resolution Full HD 1080P (front) / Full HD 1080P (rear)
Frames Per Second 30
Camera Angle 140° (front) / 160° (rear)
Image Sensor / Camera Type Front: 2.1M ON SEMI CMOS
Rear: 2.12MP IMAGE SENSOR

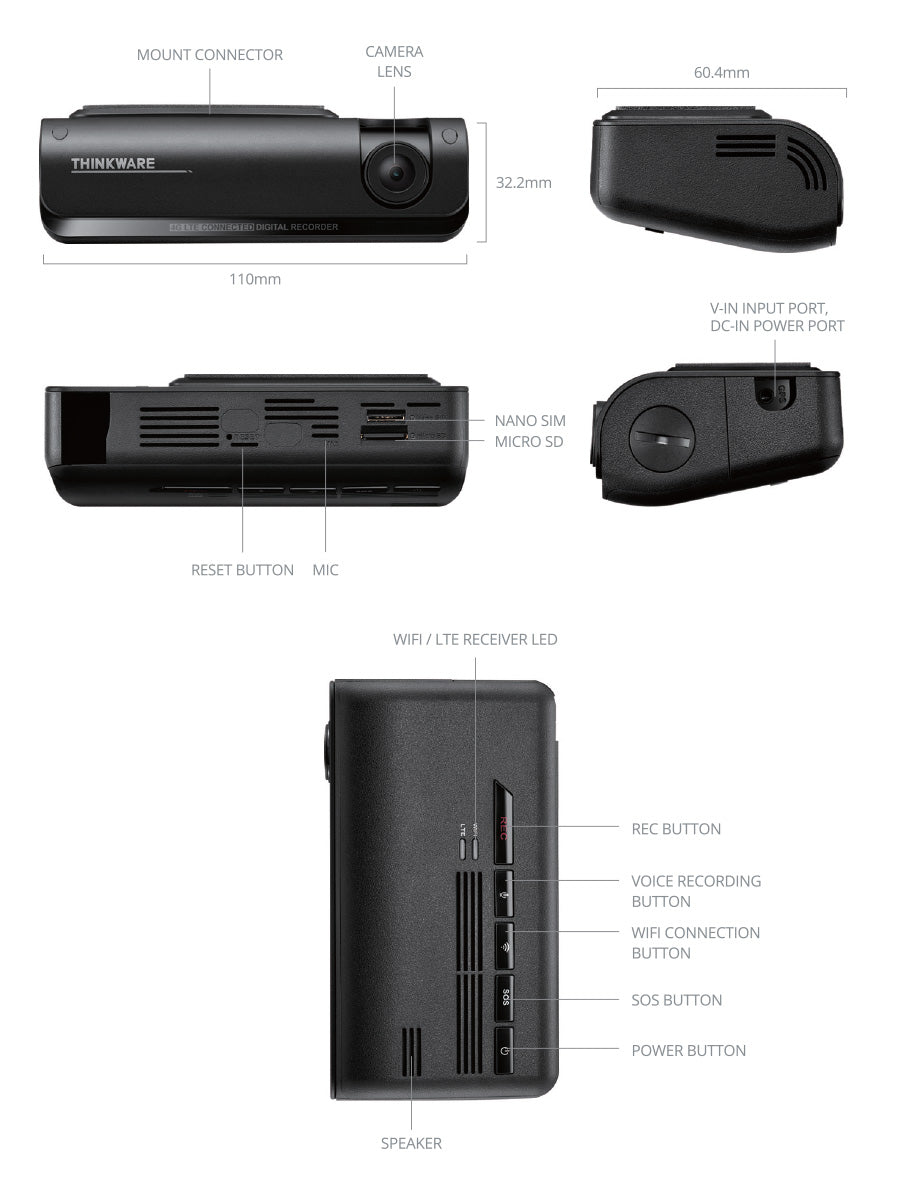

Dimensions / Weight 110 X 60 X 32 MM / 128G
Video Enhancement Technology

Wide Dynamic Range

Yes

Super Night Vision

Yes (during standard parking mode only)

Intelligent Automatic Exposure

Yes

WiFi Yes (Supports 2.4GHz and 5GHz)

GPS Yes
G-Sensor Yes
Super Capacitor Yes
High Temperature Protection Yes
Operating Temperature -10°C to +60°C
Storage Temperature -20°C to +70°C
Power Input DC 12/24V
Power Consumption 2CH 4.6W/1CH 3.4W (mean)
Voltage Detection / Cut Off Yes
Accessory Socket Power Adaptor Not Included
Hard Wire Kit (HWC) Included
Mounting Type Adhesive
Thinkware Connected LTE
Thinkware Connected LTE
Compatible SIM Card 4G LTE Bands

Australian Version, compatible with Telstra and Vodafone

2100MHz (B1) – TELSTRA, VODAFONE
1800MHz (B3) – TELSTRA, VODAFONE
850MHz (B5) – VODAFONE
2600MHz (B7) – TELSTRA, VODAFONE
900MHz (B8) – TELSTRA, VODAFONE
700MHz (B28) – TELSTRA, VODAFONE
2300MHz (B40)

Vehicle Battery Voltage Yes*
Remote Dash Cam Power Off Yes*
Driving History Yes*
SOS Notification, Video Backup, SMS Transmission Yes*
Driving Impact Notification, Video Backup, SM Transmission Yes*
Parking Impact Notification and Video Backup Yes*
Download and Share Event Location and Recorded Video Yes*
Last Park Image Capture Yes*
Real-time Vehicle Location Yes*
Remote Live View Yes*
Safety Camera Alerts
Fixed Speed Camera Yes
Mobile Speed Camera Zone Yes
Average Speed Camera Zone Yes
Red Light Camera Yes
Advanced Driver Alert System (ADAS)
Lane Departure Yes
Urban Forward Collision Yes
High Speed Forward Collision Yes
Front Vehicle Departure Yes
Recording Modes
Continuous Loop Yes
Impact Incident Yes
Manual Yes
SOS Recording Yes
Park Motion Detect Yes**
Park Impact/Incident Yes**
Park Time Lapse Yes**
Park Energy Save Yes**
Audio/Voice Yes
Video Format MP4
Video CODEC H264
Audio CODEC PCM
Compatible Apps Thinkware Connected LTE and Thinkware Das Cam Link (Requirements: Android 7.0 Nougat or higher and iOS 11.4 or higher)
Memory Card Capacity / Class Supports up to 64GB UHS-1
Warranty 2 Years on camera hardware, 12 Months on Micro SD
Country of Manufacture Korea

Important Information

(Notes)

(*) To use the 4G LTE Connected Features and App, the dash cam requires an active 4G nano SIM Card with SMS and internet data (not included). The SIM Card and Smartphone operating the app require mobile internet data and will consume data. Dash cam must be hardwired to vehicle to use the 4G LTE Connected features as well as parking mode features.
