The Prime Series were developed for car audio fanatics that want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. The latest generation of Prime Series amplifiers are also designed to be easy to setup and configure, making them perfect for use with factory audio or custom aftermarket systems.

• Balanced Differential Inputs with RCA Pass Through Outputs
• High Level Input Capable
• Defeat able Auto Turn On Circuit
• Features C.L.E.A.N. Set-up
• Variable Input Gain adjustment level
• Continuously Variable On Board Punch EQ

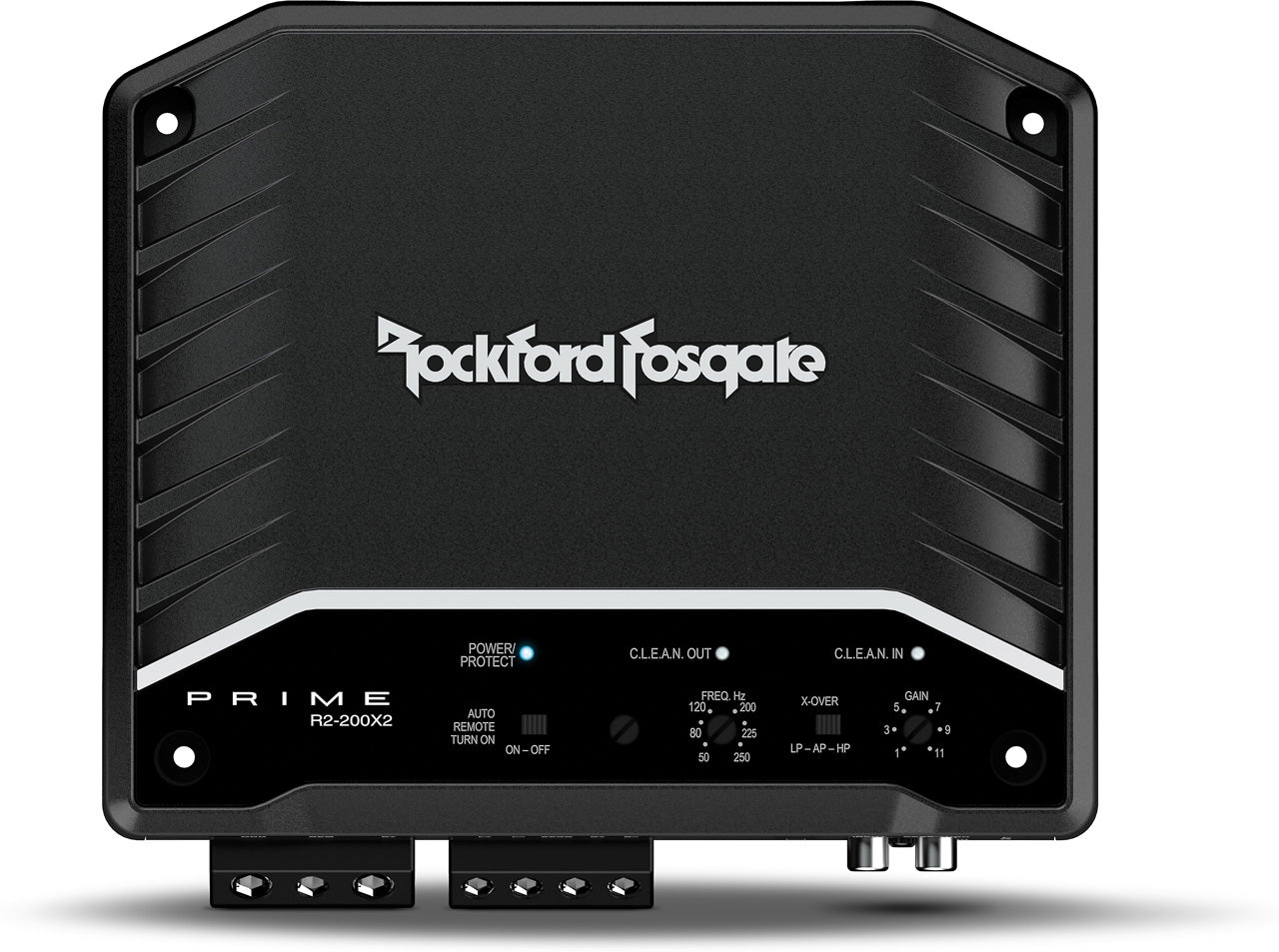

• Top Mounted Control Panel
• Short Circuit & Over Current Protection
• CEA-2006 Compliant & CE Compliant
• Cast aluminum heat sink
• Full Range Class D
• Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
• 1 Year Warranty

CEA-2006 Compliant

CEA-2006 Power Rating
50W x 2 @ 4Ω
≤1.0% THD+N

Number of Channels

2

Total Power
(Sum of Rated Power)

200 Watts

Rated Power
(RMS Continuous Power)

50 Watts x 2 @ 4Ω
100 Watts x 2 @ 2Ω
200 Watts x 1 @ 4Ω Bridged/Mono

Dynamic Power
(PVC/PowerCube®)

60 Watts x 2 @ 4Ω
107 Watts x 2 @ 2Ω
215 Watts x 1 @ 4Ω Bridged/Mono

Bridgeable

Yes

Frequency Response

20 Hz - 20 kHz

Input Sensitivity

Low-Level: 150 mV - 4 V
High-Level: 450 mV - 12 V

Circuit Topology Class

Class D

Efficiency (average)

Total Harmonic Distortion (THD+Noise)

4Ω: <1.0%
2Ω: <1.0%

Signal Input

Low-Level: 2 RCA
High-Level: 4-Pin Molex

Signal Output

Low-Level: 2 RCA

Tone Controls

No

Crossover Controls

High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
All-Pass: Yes
