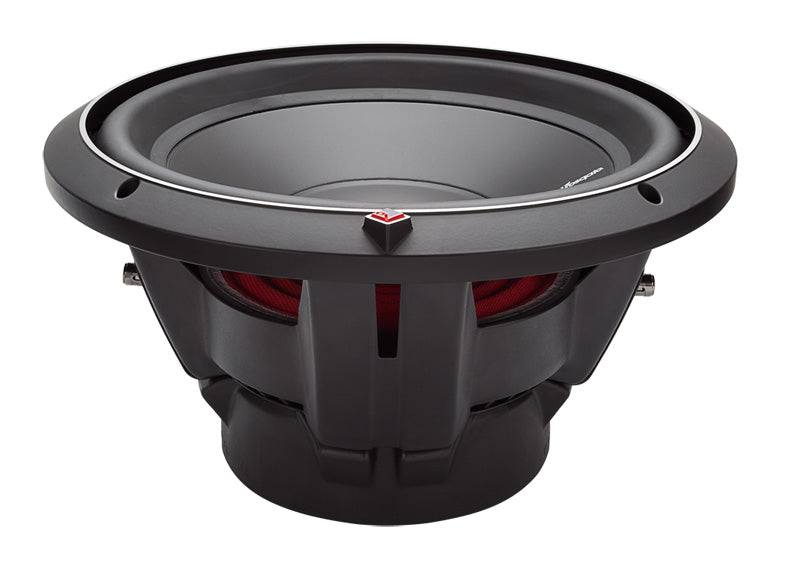

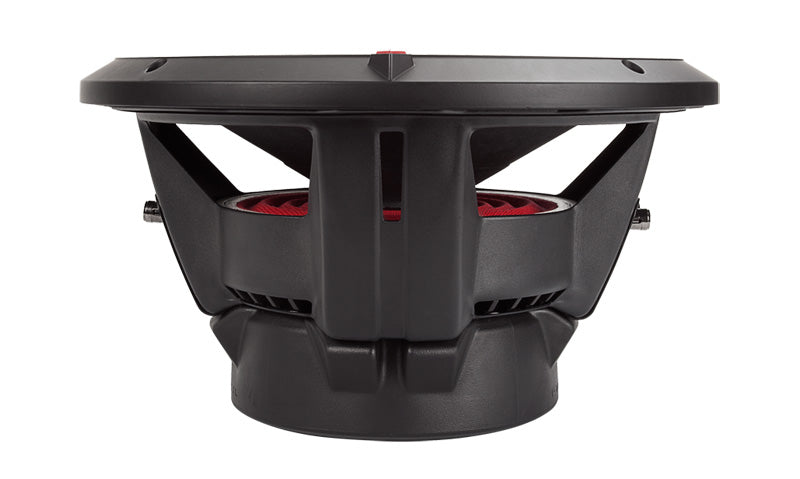

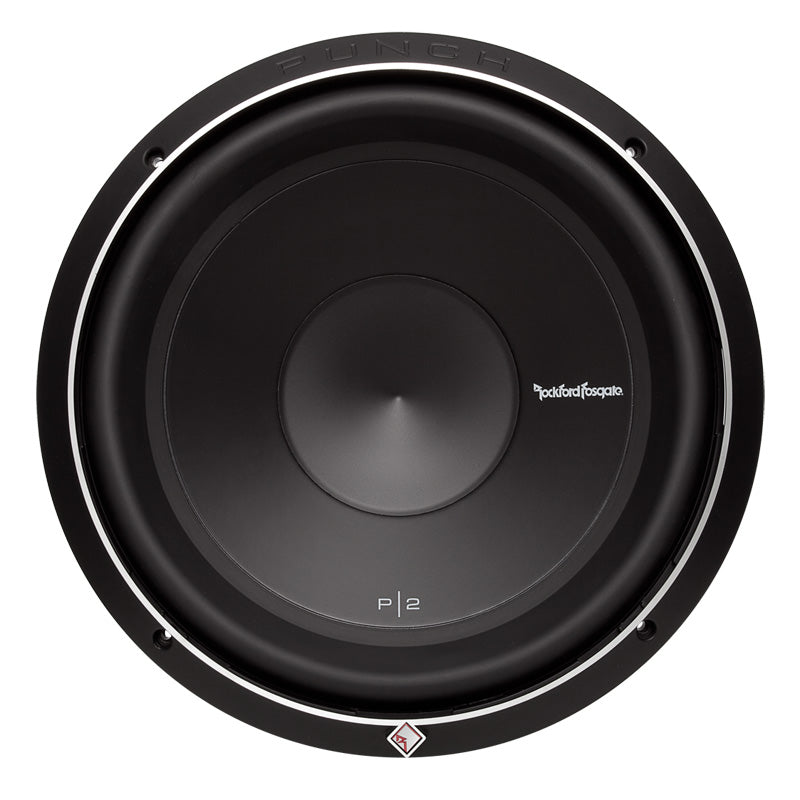

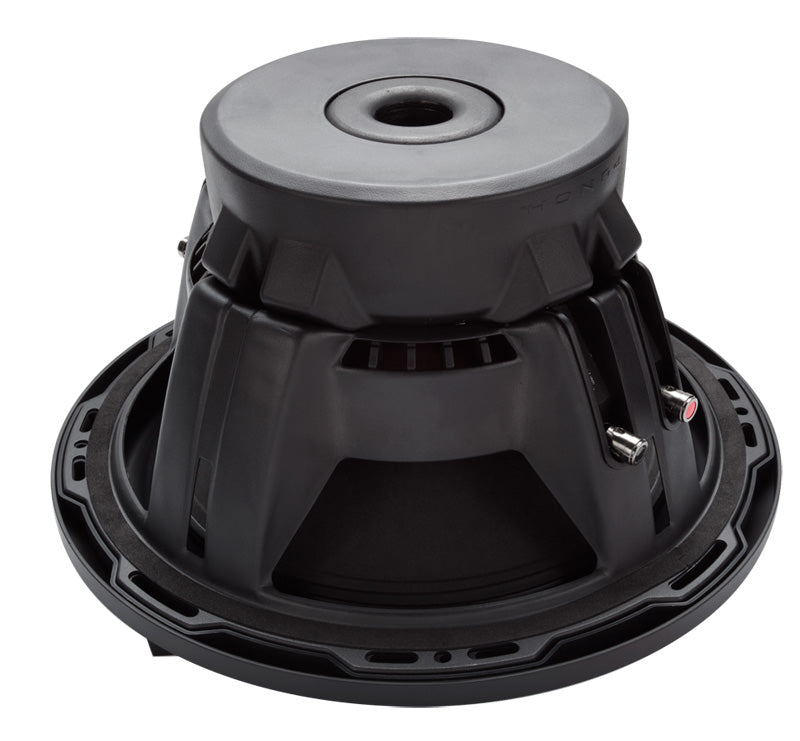

P2D2-12

Rockford Fosgate has always been known as "The PUNCH" and the P2 12" subwoofer certainly continues with the tradition. Kevlar fiber reinforced paper cones deliver bass impact you can feel along with VAST technology to increase surface cone area up to 25%. The P2 subwoofers perform best in standard sealed and vented enclosures. Includes diamond cut cast aluminum trim ring. Optional grille insert available.

CEA-2031 Compliant:

Size:

12"

Nominal Impedance:

Dual 2-Ohm

Power Handling (Watts RMS):

400 Watts RMS  800 Watts Max

Voice Coil Diameter:

2.25" (57.15 mm)

Magnet Weight (oz):

72.8 oz. (2.06 kg.)

Speaker Connector:

Dual 10 AWG compression

Fs (Hz):

26

Re (Ohms):

3.30

Le (mH):

3.7

Qms:

6.50

Qes:

0.56

Qts:

0.52

Vas (Liters):

81.5

Sd (cm2):

570

CEA-2031

Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.



Learn more





Klippel Verified

Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.



Learn more





Stitched Tinsel Leads

Improved reliability and performance by reducing fatigue and possible shorting.



Learn more





Anodized Aluminum Voice Coil Former

Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat...



Learn more





VAST Surround - Subs

The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating...



Learn more





Flex Fit Basket - Subwoofer

The slot mounted frame pattern allows fine-tuning of the subwoofer's mounting position.



Learn more
