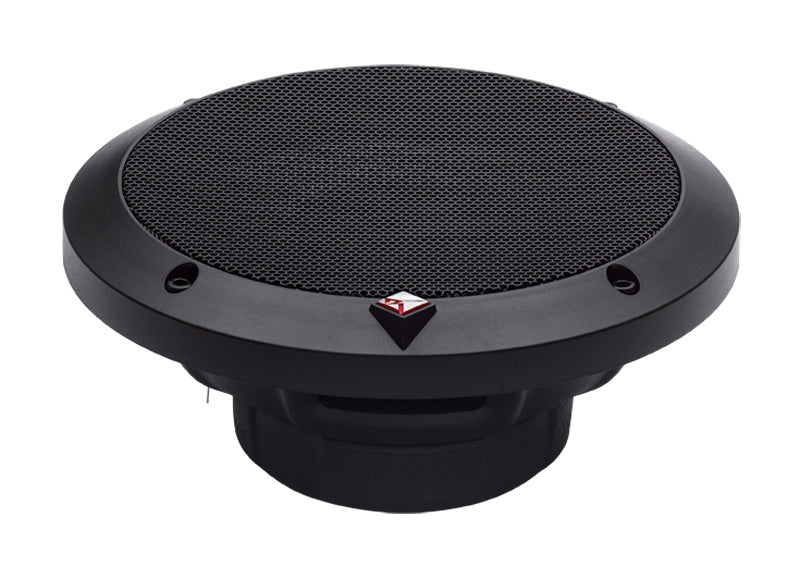

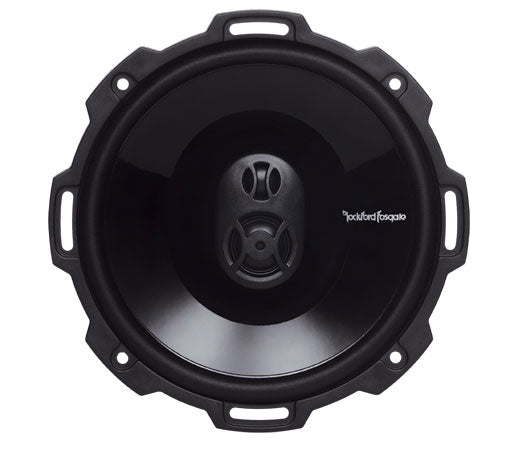

Rockford Fosgate designed the Punch P1675 6-3/4" speakers as a high-grade replacement for your factory speakers. Each speaker features a responsive polypropylene cone and butyl rubber surround that'll stand up to hours of high-volume jams. The dome tweeter and supertweeter provide clear, extended highs that can hold their own when the bass gets heavy.
Take a closer look and you'll notice a couple of cool innovations. Rockford Fosgate uses a new technique to attach the surround to the cone that yields up to 25% more cone area, for fuller sound and stronger performance. The slots around the frame eliminate the need to redrill screw holes when the factory holes are just a little bit off. And these speakers come with adapter plates that you can modify to install these speakers into 5"x7", 6"x8", or 6"x9" openings. Grilles are included.
General | ||
---|---|---|
Design | 3-way | |
Tweeter Design | 3/4" Dome | |
Tweeter Composition | PEI | |
Woofer Composition | Mineral filled poly | |
Woofer Surround | Butyl rubber | |
Specifications | ||
Sensitivity | 92 dB at 2.83 volts 89 dB at 1 watt |
|
Frequency Response | 60 - 24k Hz | |
RMS Power Range (Watts) | 6-60 | |
Peak Power Handling (Watts) | 120 | |
Impedance (Ohms) | 4 | |
Top-mount Depth (Inches) | 2 1/4 | |
Bottom-mount Depth (Inches) | N/A | |
Cutout Diameter or Length (inches) | 5 5/8 |
Injection-Molded Polypropylene Woofers: The woofer cones are mineral filled, injection-molded polypropylene. This molding process assures a uniform cone thickness for superior linearity and clarity. It is also light weight and rigid for decreased distortion and improved bass response.
Butyl Rubber Surrounds: The butyl rubber surrounds dampen unwanted harmonic distortion while maintaining linear geometry under extreme weather conditions. This leads to less distortion, superior frequency response, and superior durability.
VAST Surround: The Vertical Attach Surround Technique (VAST) increases a speaker's effective radiating cone area without increasing the size of the basket.
Tweeters: Each speaker features two tweeters, 1/2" and 3/4" domes. The material used is PEI (Poly-Ether-Imide); PEI is a polymer film that produces a wide soundstage for superior imaging.
FlexFit Basket: The Flex Fit frame utilizes slots (where possible) instead of single screw sized holes; allowing slight adjustment of the speaker when mounted.
StampCast Basket: The P1675 features StampCast steel baskets for added rigidity.
Adapter Bracket: For mounting flexibility, the included brackets can be modified to fit 5x7, 6x8, or 6x9 applications.
Note: The bracket is generic (cutout sized for a 5-1/4) and requires modification before the P1675 will fit into it.
Speaker Terminals: These speakers have 0.25" wide positive (+) terminals and 0.187" wide negative (-) terminals
