Morel - MPD4.70 - 4-CHANNEL CAR AMPLIFIER - 70 WATTS RMS X 4

Morel - MPD4.70 - 4-CHANNEL CAR AMPLIFIER - 70 WATTS RMS X 4

$459.00
$459.00
Sold out
Tax included.

MPD

MPD amplifiers offer an audio experience that’s truly extraordinary.

Experience the perfect harmony of power, size, and sound quality.  The MPD4.70 boasts a robust 4x 70W @ 4 ohms,...

20 people are viewing this right now

Availability: In stock
SKU: MPD4.70
Vendor: Morel
Category: Unknown Type
View full product details

MPD

MPD amplifiers offer an audio experience that’s truly extraordinary.

Experience the perfect harmony of power, size, and sound quality.  The MPD4.70 boasts a robust 4x 70W @ 4 ohms, while the MPD4.100 delivers an impressive 4x 115W @ 4 ohms. If you’re looking for even more power, the monoblock MPD1.500 can produce a staggering 500W x 1 @ 2 ohms, allowing you to tailor your audio experience to your specific preferences.

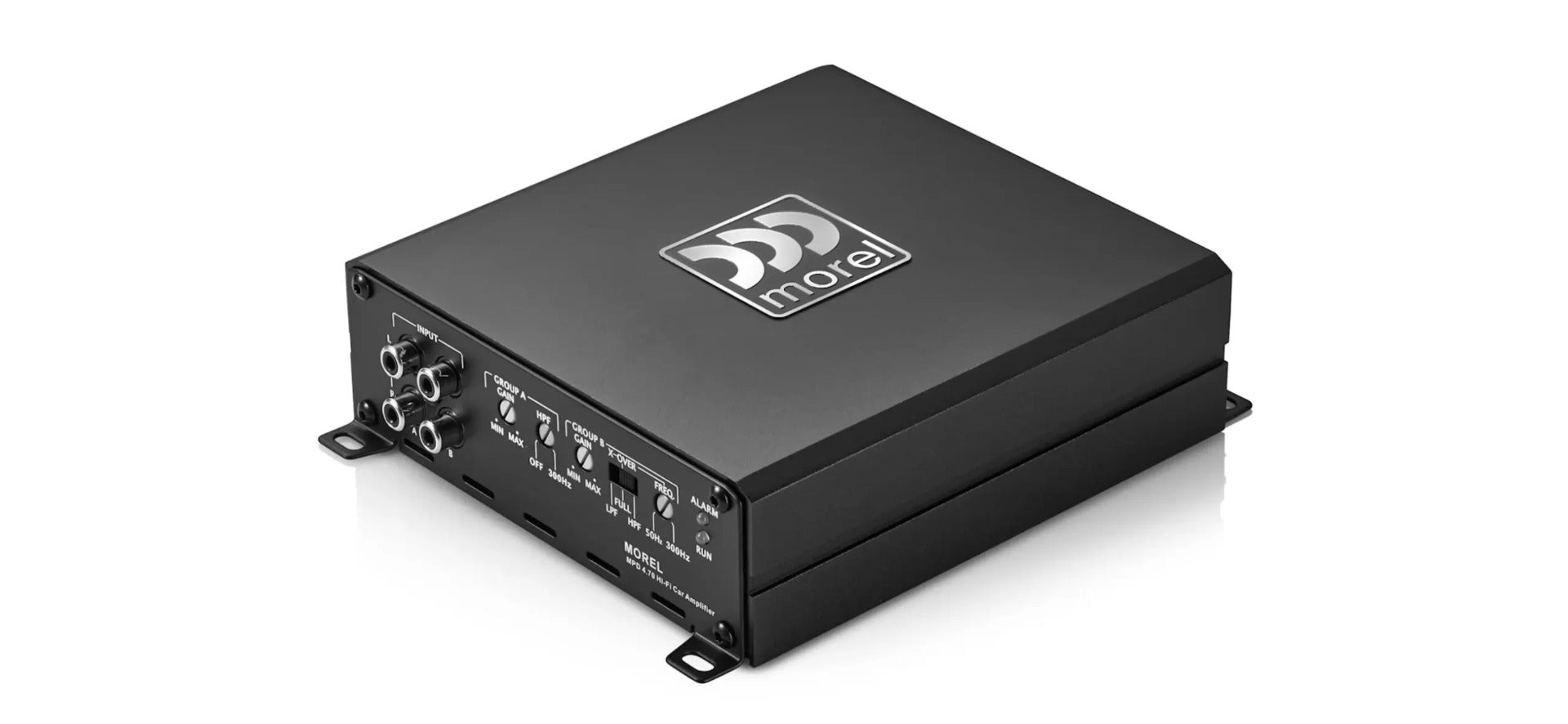

MPD4.70 Compact Powerhouse Amplifier

Experience exceptional in-car audio with the Morel MPD 4.70 Amplifier. This compact yet powerful amplifier delivers 70W x 4 at 4 ohms and 100W x 4 at 2 ohms, with a bridging option of 200W x 2 at 4 ohms. Enjoy impressive sonic clarity with a frequency response of 20Hz to 30kHz and a Signal-to-Noise ratio over 93dB. Customize your sound with variable high-pass and low-pass crossovers (50-300Hz, 12dB slope) and maintain crystal clear music with a Total Harmonic Distortion (THD) below 0.2%. The built-in protection circuit ensures long-term reliability, making the MPD4.70 the perfect choice for audiophiles seeking high-quality sound in a compact package.

Key Features Across All Morel MPD Amplifiers:



• Impressive Clarity: Wide frequency response of 20Hz to 30kHz and Signal-to-Noise ratio over 93dB ensure superior audio quality.

• Compact and Powerful: Space-saving designs with robust power outputs suitable for any vehicle. These amplifiers can be discreetly tucked away, yet they deliver remarkable power without consuming valuable space.

• Customizable Sound: Variable crossovers for personalized audio tuning, enhancing your in-car audio experience.

• Built-in Protection: Advanced circuits to safeguard against overcurrent, short circuits, thermal issues, and internal errors, ensuring long-term reliability.

• MPS-HL high-low level adaptor – All MPD Amplifiers seamlessly pair with the MPS-HL high-low level adaptor (available separately), equipped with a 50-ohm load resistor to keep load-sensing factory amplifiers active, simplifying your installation process.

Specifications


Reference Series MPD 4.70 MPD 4.100 MPD 1.500
Power 4 ohm RMS 4 x 70 4 x 115 1 x 350
Power 2 ohm RMS 4 x 100 4 x 165 1 x 550
Bridged 4 ohm RMS 2 ×200 2 x 330 N/A
Class D D D
THD+N >0.2% >0.2% >0.3%
Freq. Resp. Main 20-30 kHz 20-30 kHz 10-220 kHz
Channel Seperation 64 dB N/A 64 dB
S/N Ratio (Rated Power, A Rated) >93 dB >93 dB >98 dB
Channel Separation >50 dB >50 dB N/A
Filters Main (Both 4 Channel) HPF OFF-300Hz for Group A   LPF 40~220Hz
  LPF/HPF 50Hz-300Hz for Group B   Subsonic OFF~50Hz
Crossover Slope 12 dB/Octave 12 dB/Octave 12 dB/Octave
Sub Level Control No Yes 0-20dB Yes 0-20dB
Channel Input Mode Yes 2 or 4 No Yes 2/4 or 6
Sub Sonic Filter No Off/25/35Hz Off/25/35 Hz
Input Voltage Low (Pre) 0.35 - 3.5V 0.35 - 3.5V 0.35-3.5V
Input Voltage High (Speaker)   0.7 - 7.7V 0.7 - 7.7V
Input HL Adaptor Sold Seperate Sold Seperate Sold Seperate
Fuse within 400mm of Battery 50A 60A 60A
Size H x W x L (mm) 48 x 148 x 195.5 48 x 148 x 203.5 48 x 148 x 181.5
