Morel - Maximo Ultra 603A MKII - (No Crossover) 6.5inch 3 way component Speakers - 100 Watt RMS

Morel - Maximo Ultra 603A MKII - (No Crossover) 6.5inch 3 way component Speakers - 100 Watt RMS

Regular price $749.00
Regular price Sale price $749.00
Sold out
Tax included.

Morel invested the same passion, engineering and philosophy that earned its car audio speakers countless awards in the development of the new MAXIMO ULTRA line consisting of 2-way, the new...

18 people are viewing this right now

AvailabilityIn stock

SKU: Maximo Ultra 603A MKII
Vendor: Morel
Category: Unknown Type
View full product details

Morel invested the same passion, engineering and philosophy that earned its car audio speakers countless awards in the development of the new MAXIMO ULTRA line consisting of 2-way, the new 3-way component systems, and coaxial speakers.

Following Morel's philosophy of high quality, musical systems, it features some of the company's innovative technologies and new design characteristics. Engineered to be easily installed in factory locations and integrate with factory head units.

The Maximo Ultra 2-way and 3-way drivers:

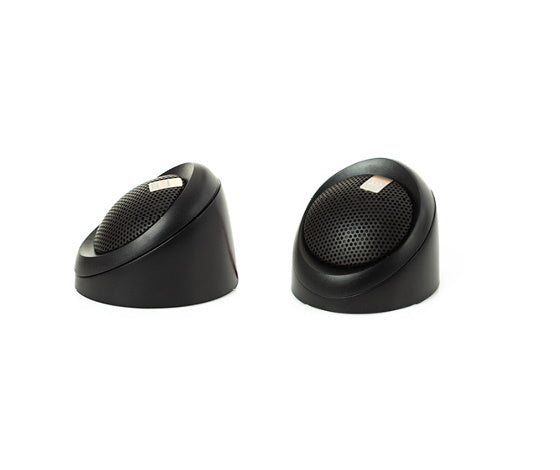

The tweeter is a new 25mm (1") diameter soft dome tweeter, that employs Morel’s external voice coil technology (EVC™) developed specifically for the Maximo Ultra. The tweeter design sets new standards for power handling and low distortion for this price level while delivering an enjoyable musical sound reproduction. Its four mounting options make installation effortless and trouble-free.

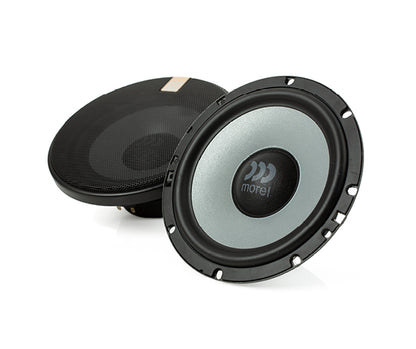

The woofer features a high-grade ferrite magnet motor that provides increased magnetic energy, with higher power handling and better efficiency than ever before. The new design uses a specially treated paper cone and computer modeled suspension for a highly linear movement during low midrange frequency reproduction, thus reducing distortion and increasing bass dynamics.

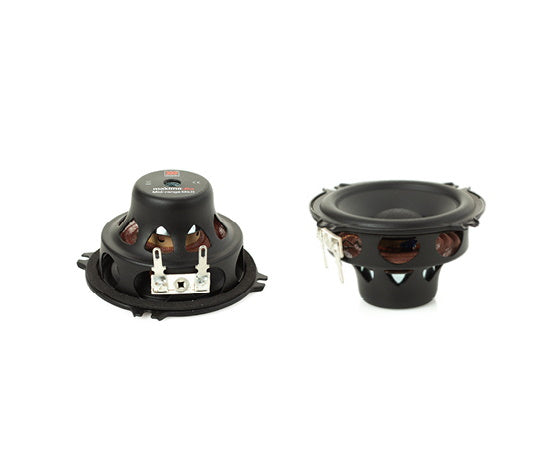

The midrange in the 3-way component system is a new 2.5-inch premium wide-range midrange employs a powerful double neodymium magnetic system that features a full copper sleeve to ensure smooth frequency response and low distortion. It delivers amazing detail and a lush midrange in a compact size.

The Maximo Ultra presents you with the best performance in its class.

Available in 5" & 6" 2-way component system, 6" 3-way component system and 4", 5", 6" and 6*9" coaxial speakers.



Features & specs

General
Speaker Size 6 1/2
Design 3-way
Tweeter Design 1" Dome
Impedance (Ohms) 4
Tweeter Composition Textile
Woofer Composition Treated Paper Composite
Woofer Surround Rubber
Parts Warranty 1 Year
Labor Warranty 1 Year
Specifications
Sensitivity (1W at 1 meter) N/A
Sensitivity at 2.83 volts 90.5
Frequency Response 50 - 20k Hz
Minimum RMS Wattage ---
Maximum RMS Wattage 100
Peak Power Handling (Watts) 180
Top-mount Depth (Inches) 2 5/16
Bottom-mount Depth (Inches) 2 1/2
Cutout Diameter or Length (inches) 5 11/16
