IP UNI-82 Split System

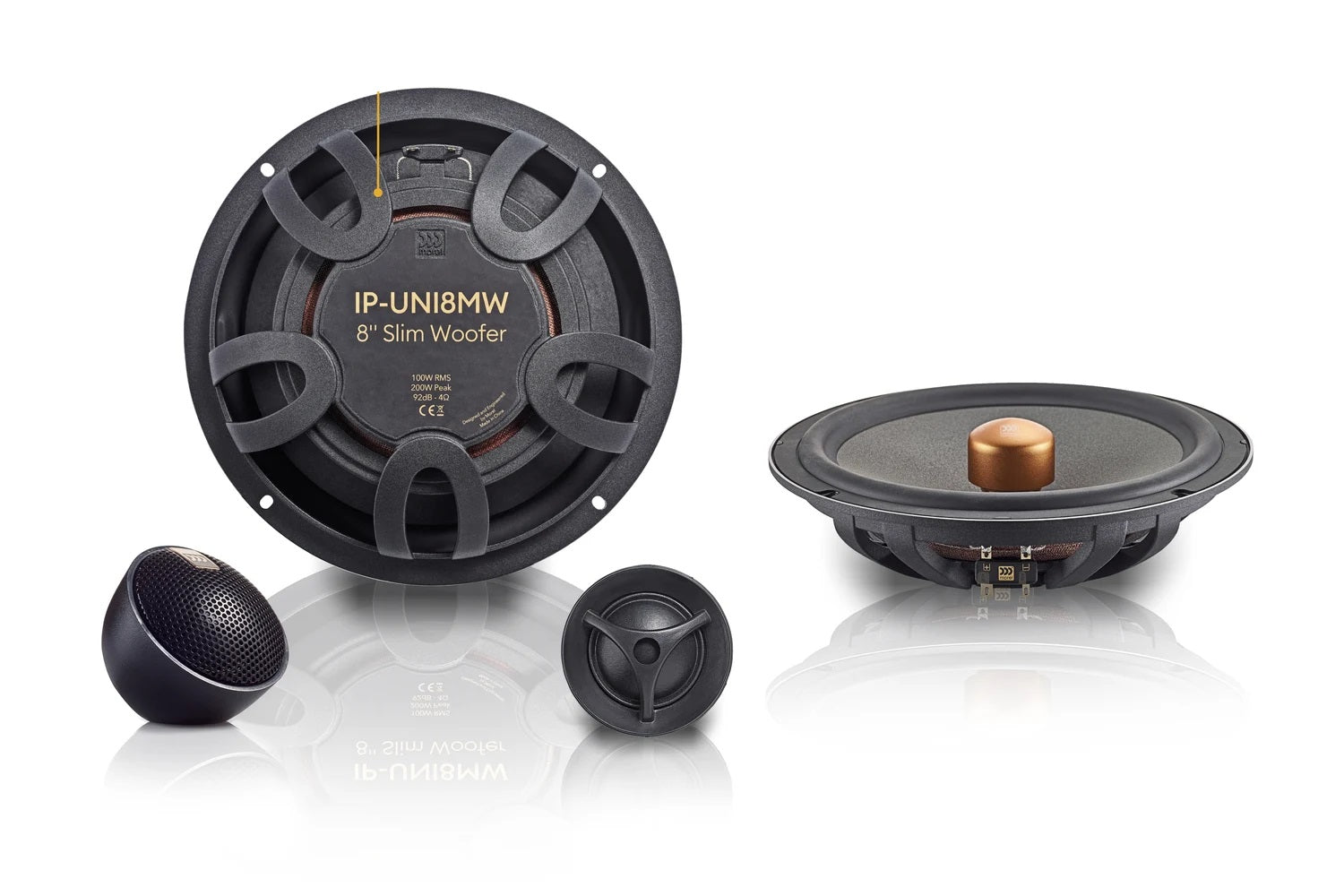

The IP-UNI82 is a 2-way universal component system built to deliver the articulation, dynamics, and natural sound Morel is known for. Featuring a pair of ultra-slim 8-inch (200mm) woofers, this system is compact and powerful, making it possible to enhance the performance of your audio system without major modifications.

Installation is a key factory with all Morel Integration Performance systems. Our engineers design each system with this in mind, keeping woofer dimensions tidy without sacrificing performance and featuring compact, high-performance tweeters and inline crossovers to simplify installation. Best of all, the integration systems can be powered with factory power or aftermarket amplification.

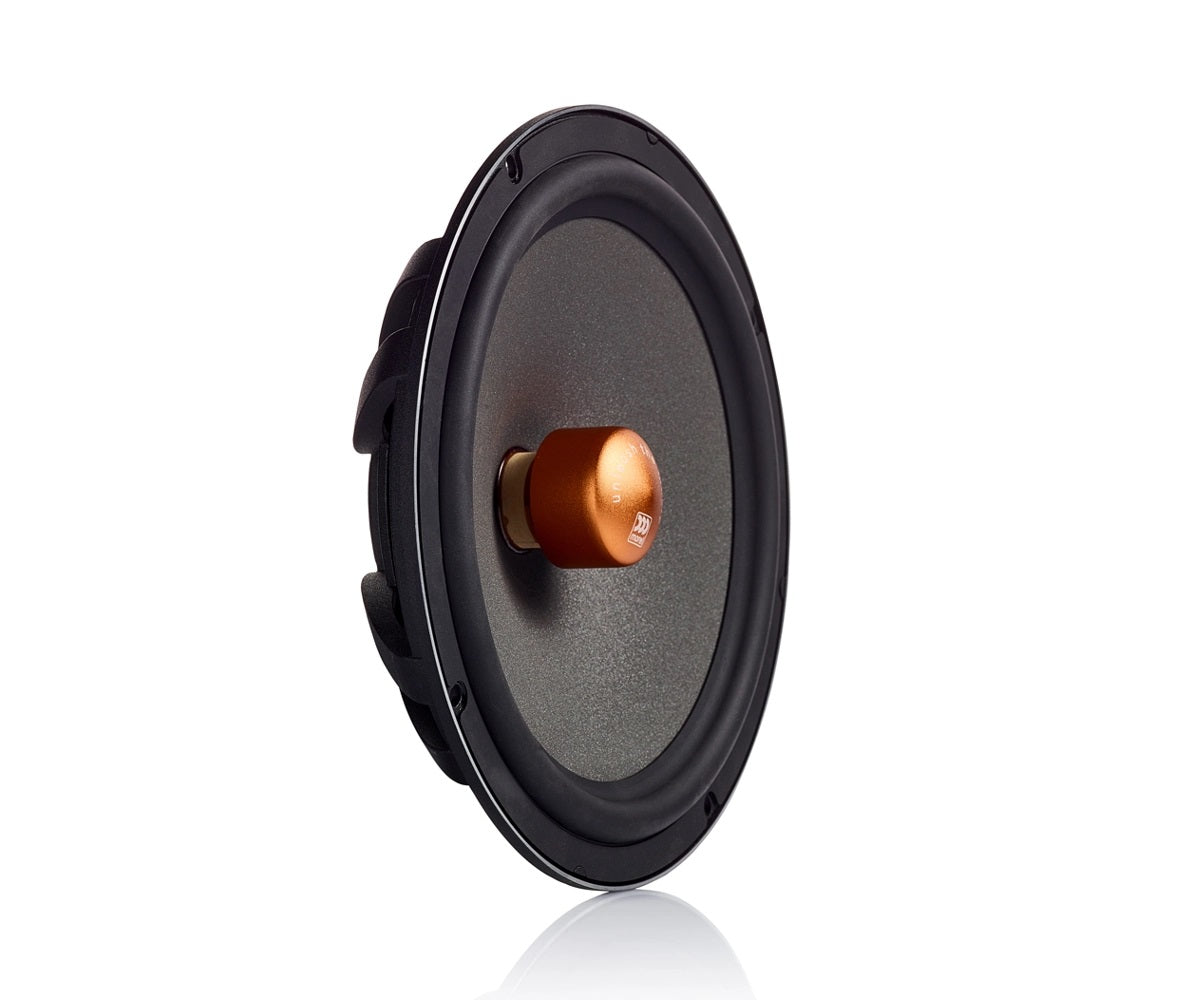

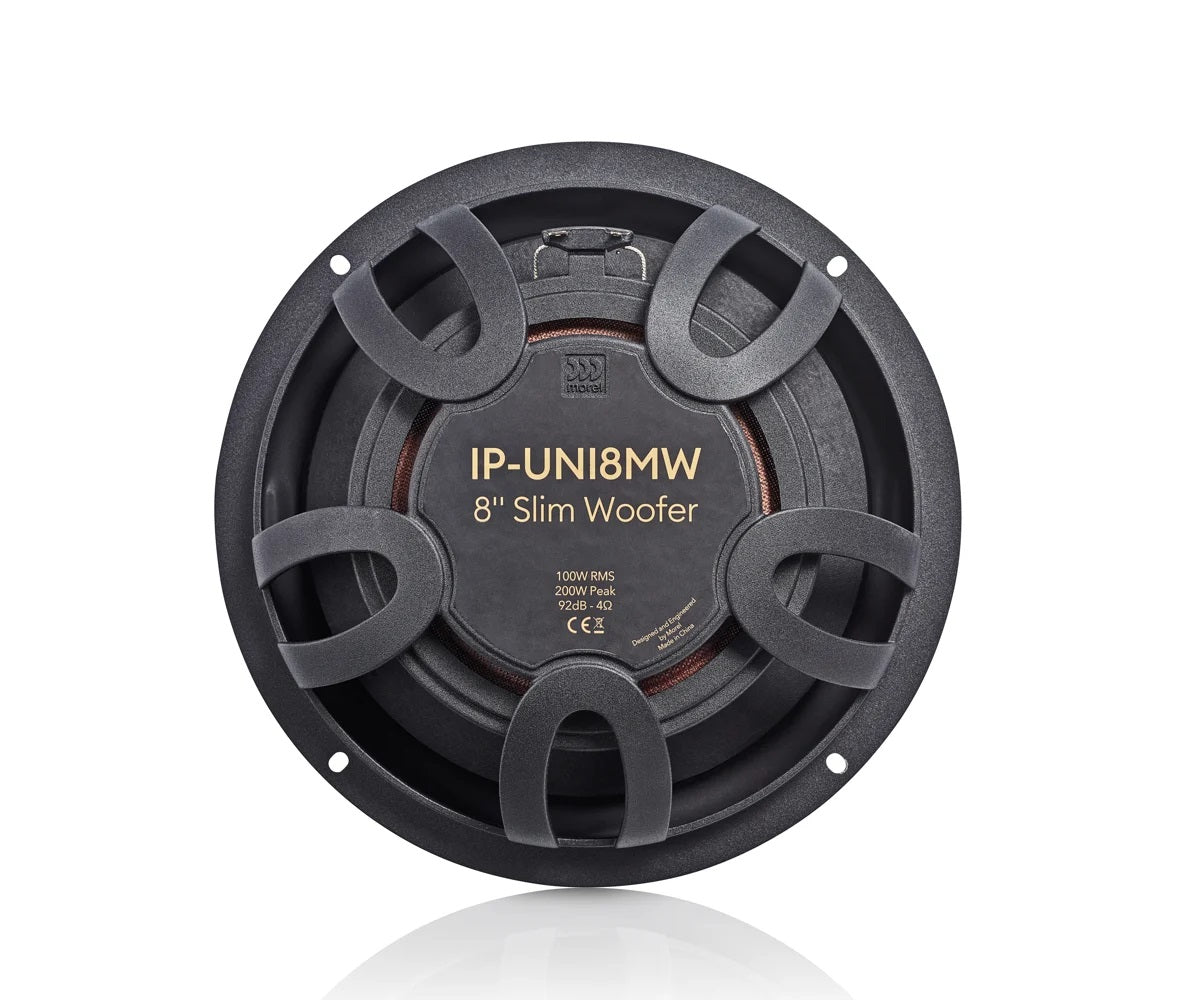

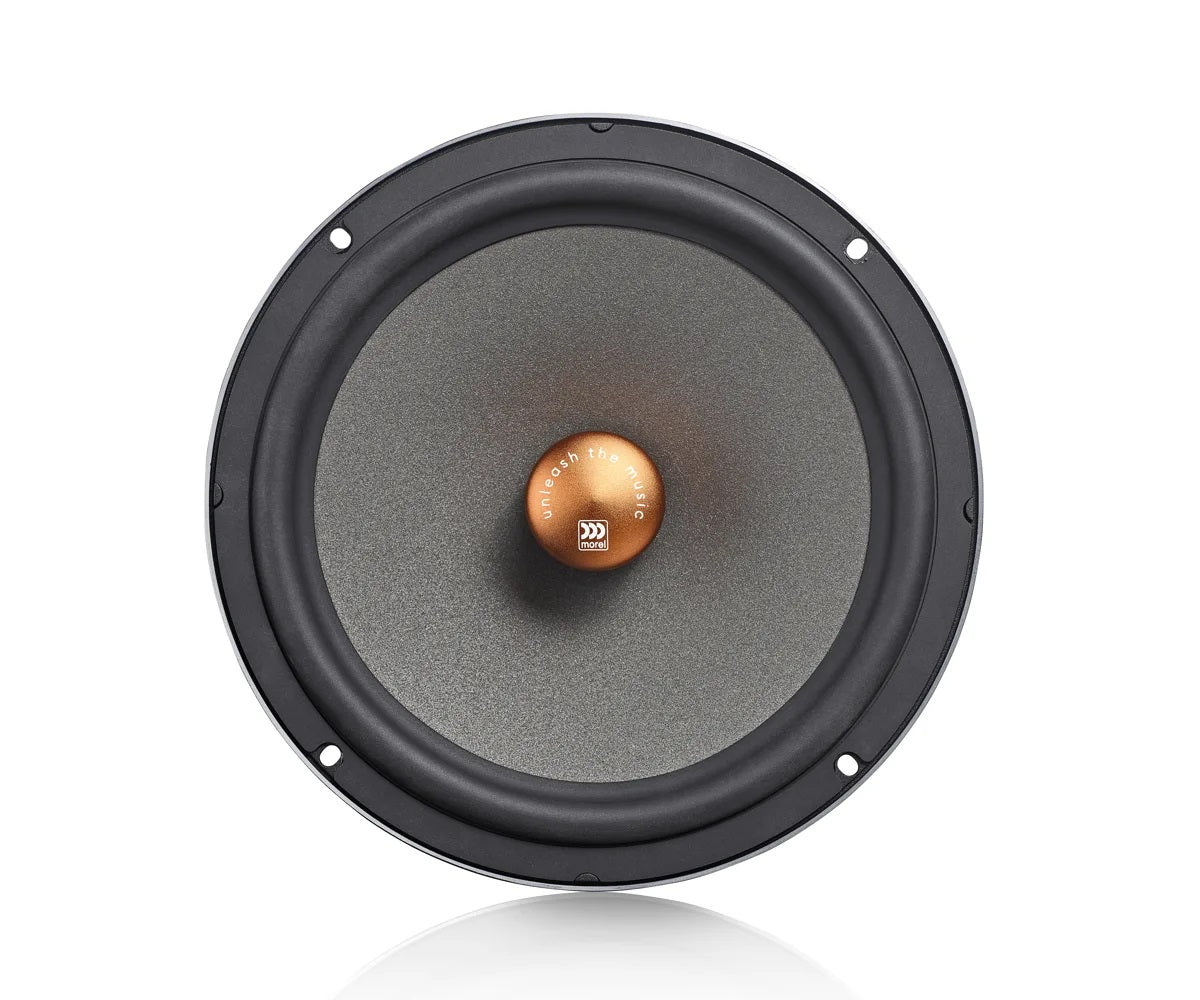

The slim form of the IP-UNI82 8-inch (200mm) woofer is a product of Morel’s innovative inverted neodymium magnet motor typology. This design places the motor in front of the speaker cone, allowing our engineers to design a proprietary chassis with a compact form factor and minimal mounting depth, allowing it to fit where other 8-inch woofers won’t.

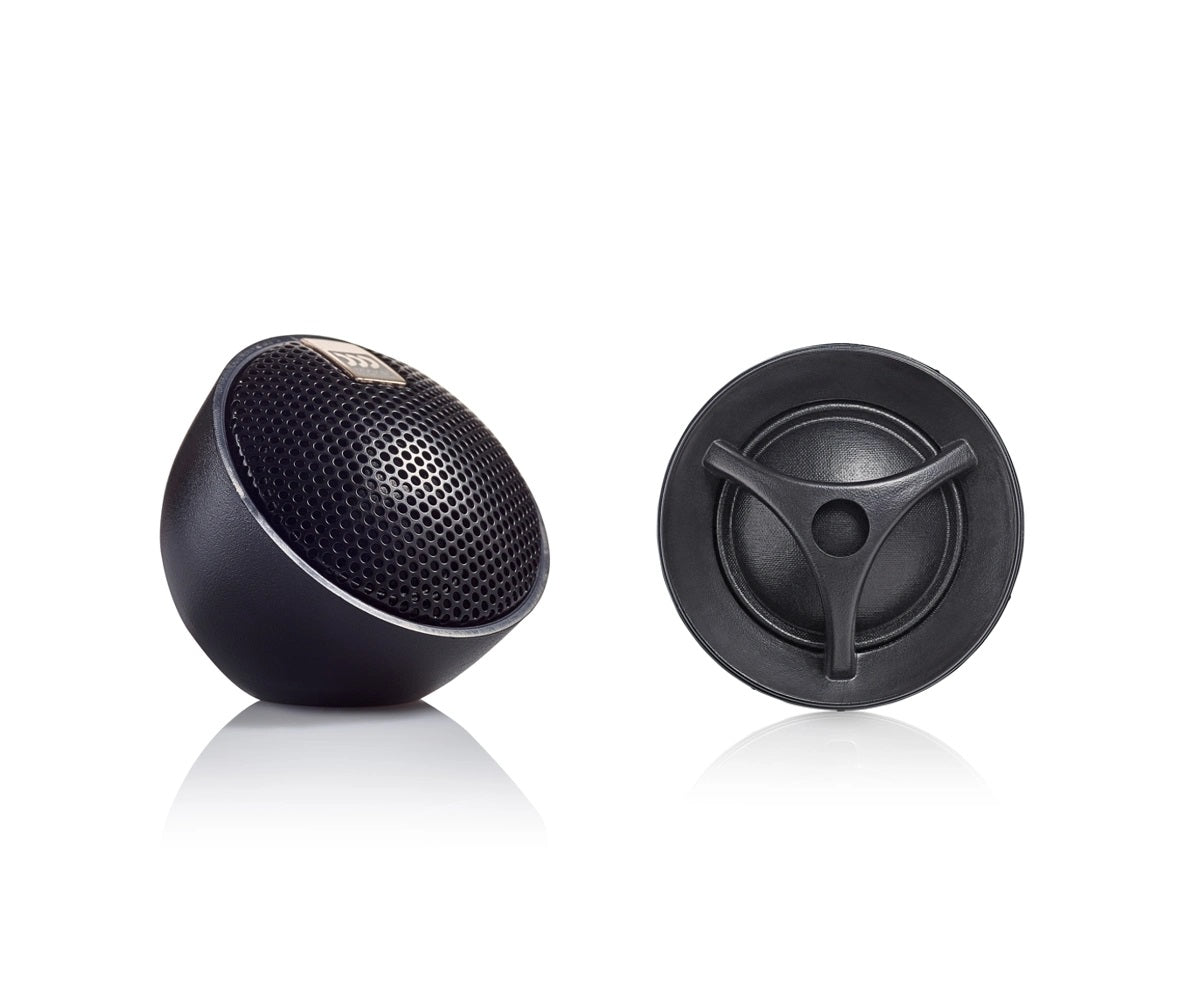

High frequencies are reproduced by our superb 1-inch (25mm) soft dome tweeters, whose compact dimensions make them easy to fit in most factory locations. Protected by an easy-to-install in-line crossover, they deliver incredible clarity and detail in the high-frequency range and integrates smoothly with a dynamic, bass-rich 8” (200mm) woofer to form an accurate soundstage and image.

The IP-UNI82 promises best-in-class performance. One listen, and we’re sure you’ll agree.

Specifications

Reference Series IP-UNI 82 Configuration 2-Way Driver Size 8" (200 mm) Crossover In-line Tweeter 1" Soft done Frequency Resp. 40 Hz - 20,000 Hz Power Handling 100 W/RMS 300 W/Peak Sensitivity 92 dB Impedance 4 ohm Speaker Grills Factory replacement
