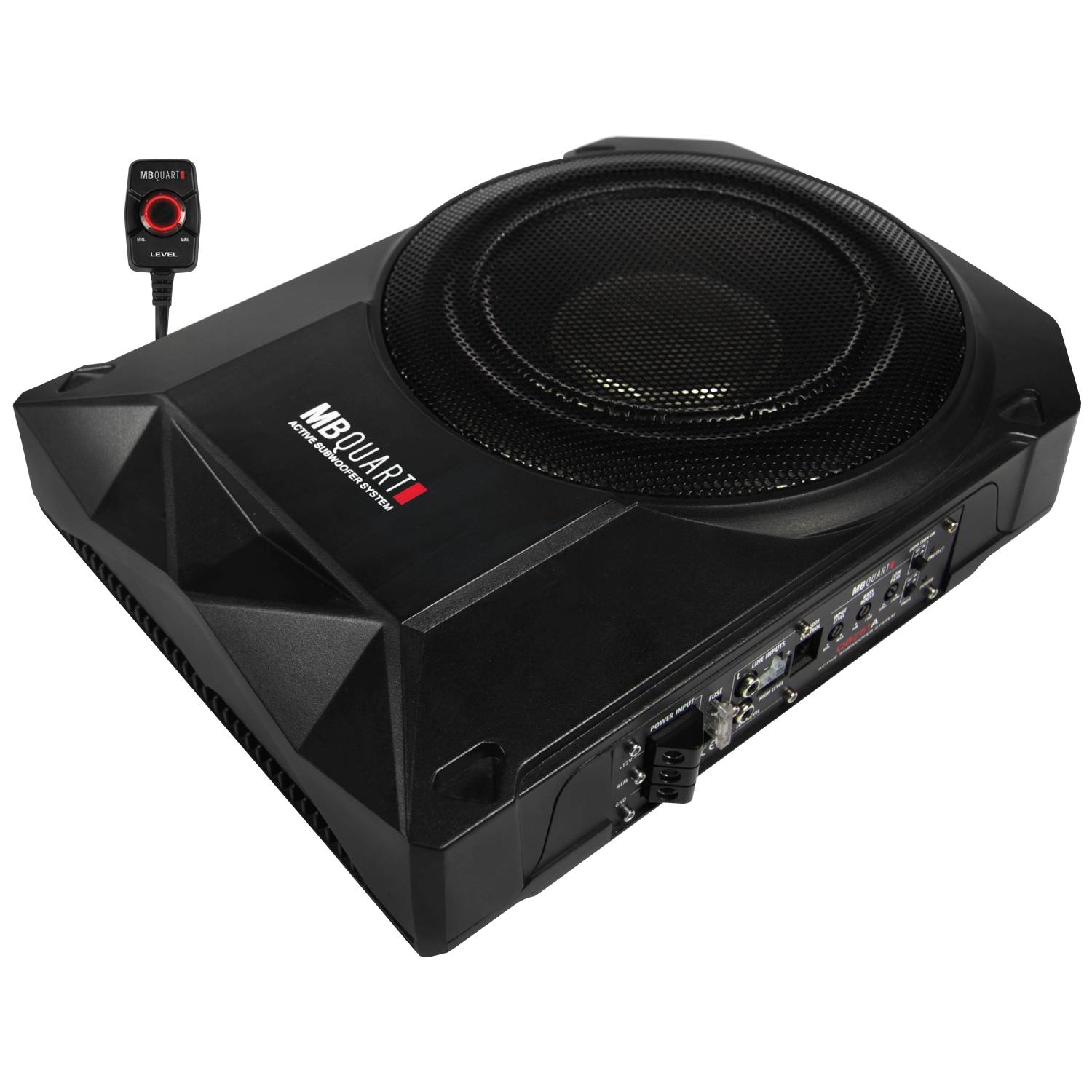

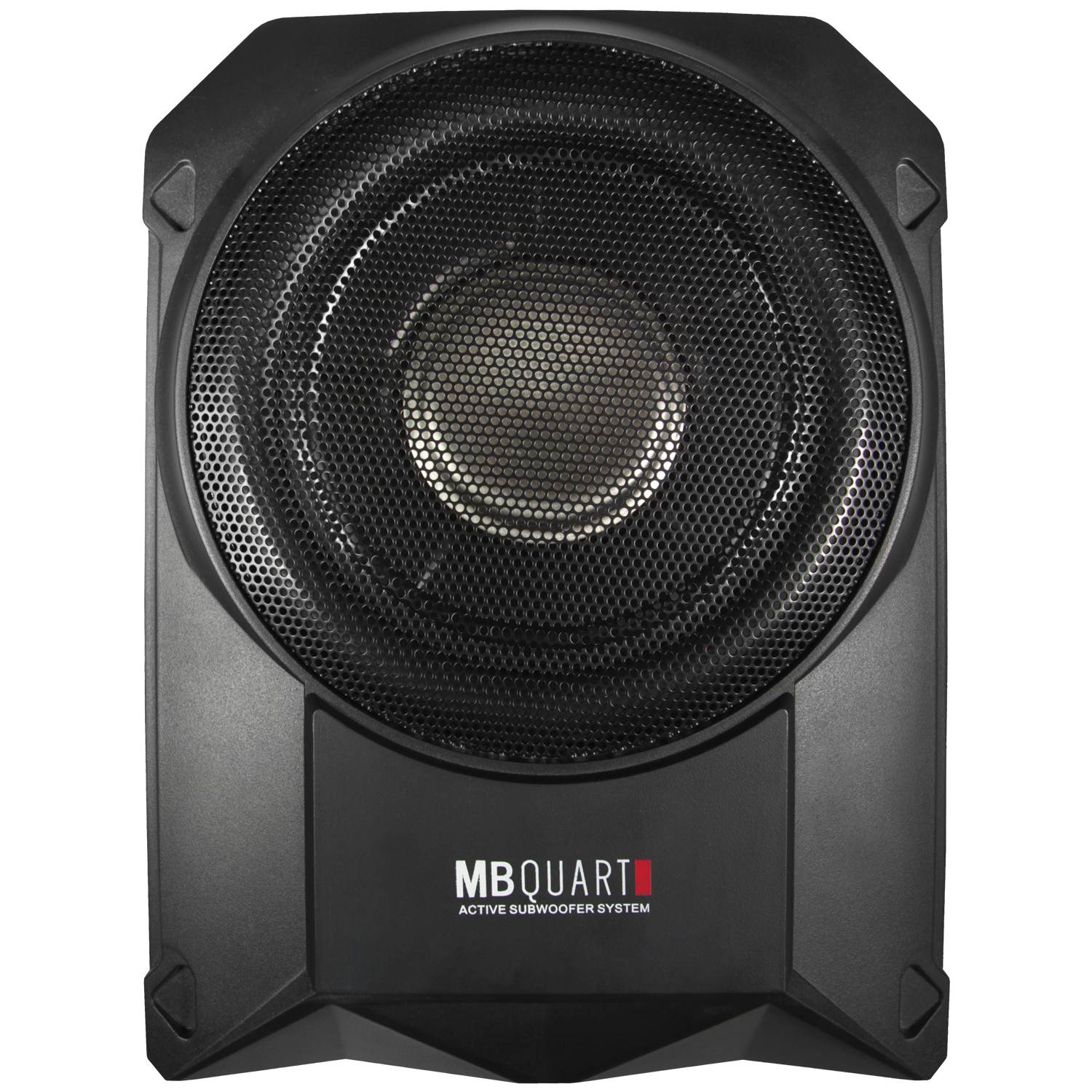

10 inch DVC Reference Underseat Subwoofer with built-in 1 channel Class AB Amplifier.

Colour

Black

Warranty

2 Years

Subwoofer Configuration

Round

Subwoofer Impedance (ohms)

4 Ohm

Subwoofer RMS Power Handling (watts)

150 Watts

Subwoofer Peak Power Handling (watts)

800 Watts

Amp Class

Class A/B

Amp Total Channels

1 Ch

Amp Max Power (watts)

800 Watts

Amp Variable Low Pass Crossover 12dB per Octave

50Hz-150Hz

Amp Bass Boost

0-12dB

Amp Phase Shift

0-180 Degrees

Amp Variable Voltage

0.2-9V

Amp Frequency Response

58Hz-20kHz

Amp Power Terminal 12v/GND

8 AWG

Amp Fusing

15 Amp

Subwoofer Surround / Cone Coupling

The pressure treated foam surround along with the poly cotton spider helps keep the piston motion of the subwoofer linear and distortion free.

Subwoofer Voice Coil / Former Assembly

Vented aluminum former holds the voice coil while allowing the heat to be exchanged. (Less heat means less distortion)

Subwoofer Spider

Poly cotton spider, along with the surround, allows the woofer to handle more power with minimum distortions.

Subwoofer Frame / Venting

Heavy duty powder coated steel frame allows back venting, which exchanges heat with cool air, resulting in more power handling and increased reliability.

Subwoofer Motor

Vented high energy motor assembly with heavy duty magnets increases power handling and increases SPL.

Subwoofer Cone

The cone/surround connection utilizes a high temp adhesive which assure the cone and surround do not separate in high power uses or extremes of weather.

Subwoofer Grills

Protective mesh grill built in.

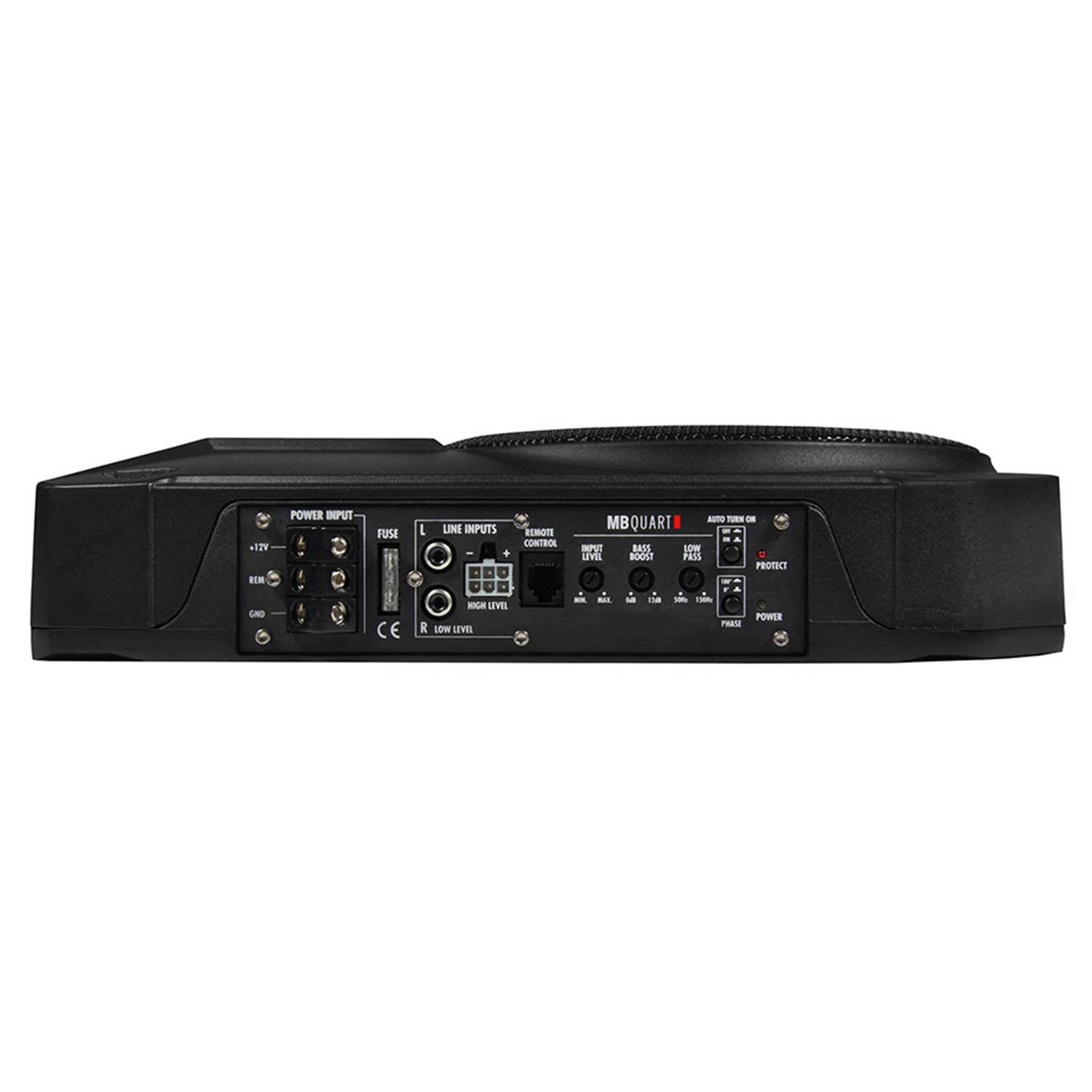

Amp Inputs

RCA Inputs: Highest sound quality connection with quality RCA materials helps prevent interference and minimize distortion in the signal path.

High Level Inputs: Easily tie into OEM audio systems that do not offer RCA output to maximize after market amplifier power.

Amp Operation Mode

Mono only

Amp Heat Sink

QTD Technology Aluminum: Quick Thermal Dispersion Technology assures additional mass in the aluminum heat sink keeps the amplifier running cool with nearly undetectable distortions during normal music listening.

Amp Power Supply

High energy Pulse Width Modulated Power Supply delivers power with minimal impact on the electrical system.

Amp Output Connections

Nickel Plated Brass Connection with terminals allow for secure connection while resisting corrosion.

Amp Connection Type

Screw Down Connectors: Easy access for hand tool allowing a quick and secure connection.

Amp LED System Protection Circuitry Diagnostics

Monitor overload and speaker short protection with lighted indicator on the amplifier end panel.

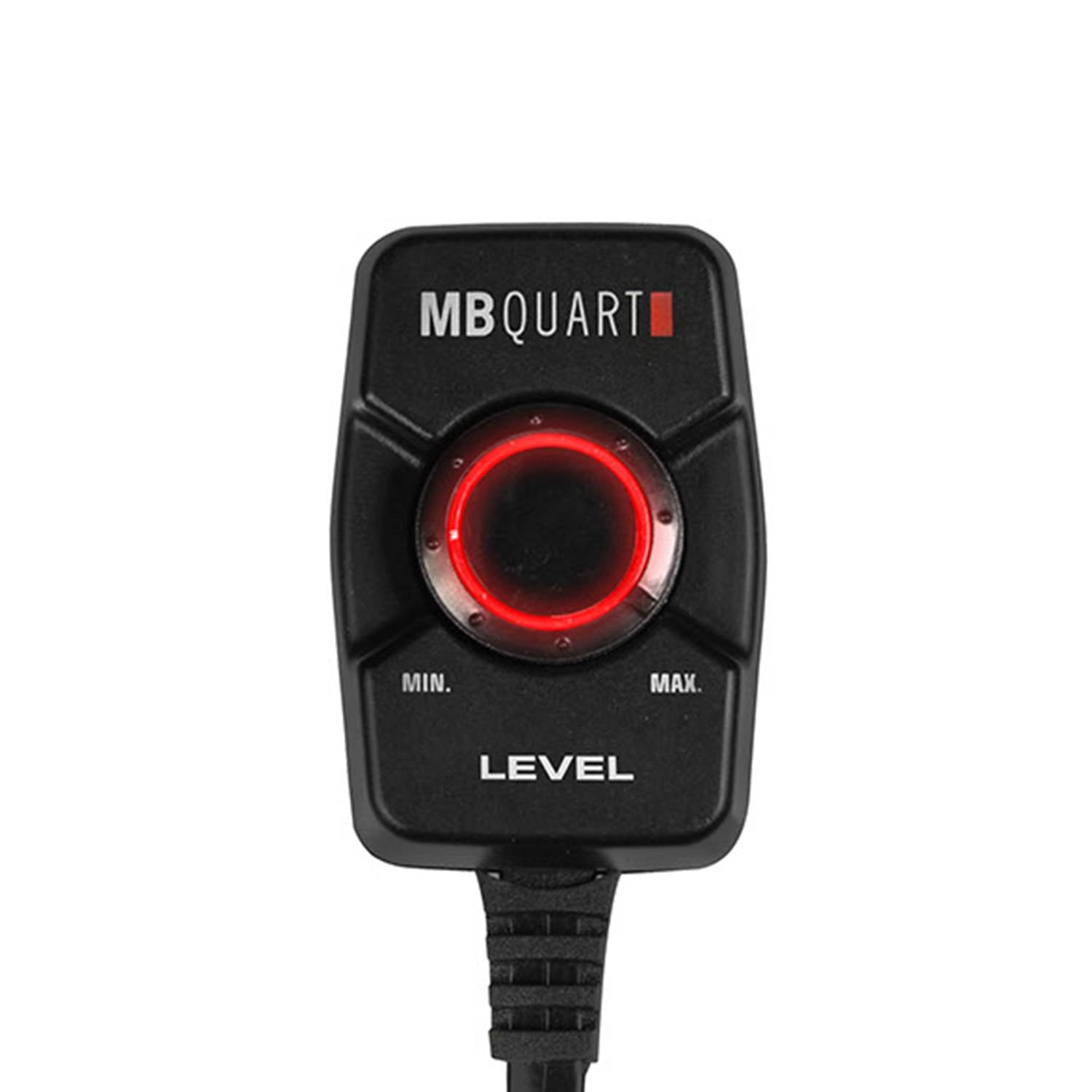

Amp Bass Remote Included

Wired Bass Remote allows adjustments to bass frequencies to be made from the control mounted anywhere in the vehicle.
