Product parameters

• Channels: 5 Channel
• Built-in DSP: Yes
• RCA Input: 0 | High-Level only
• High-Level Input: 4x High level
• Power W RMS/ch | 4Ω: 60
• Other Input: Optical
• Class: HD
• Max Input Sensitivity (V): 11
• THD+N | %: 0.03
• Operational Voltage:
• RCA Out: 4x RCA
• Product Depth | mm: 110
• Product Width | mm: 85
• Product Height | mm: 35

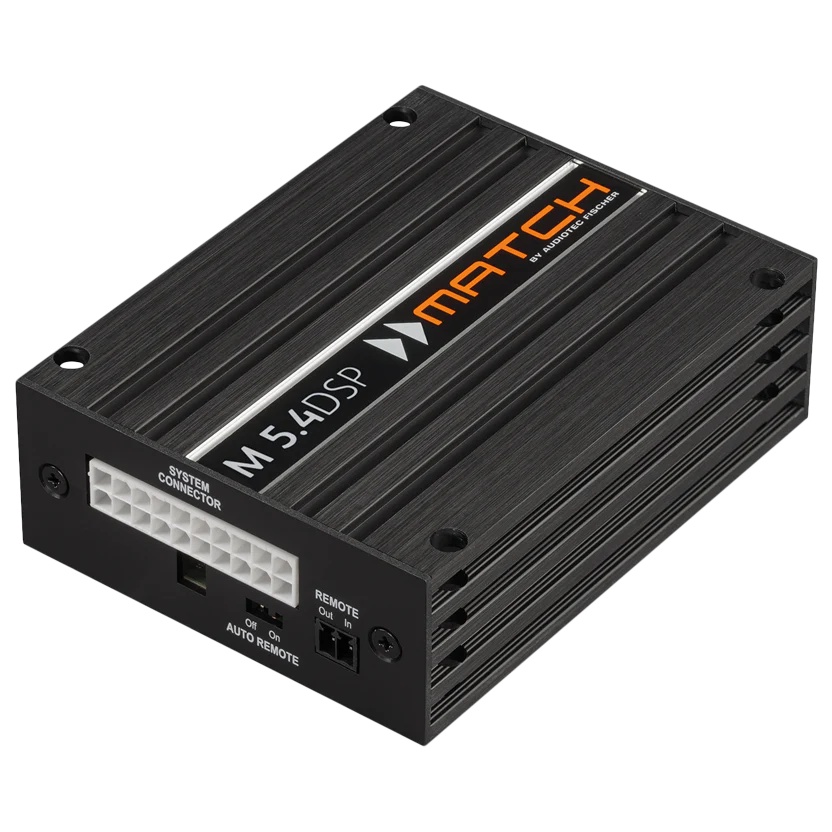

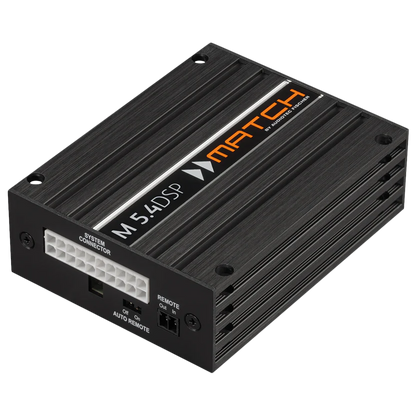

Miniature amplifier for powerful sound upgrades

The new M 5.4DSP is a true giant in terms of power while being barely larger than a smartphone. With incredible 400/ 800 Watts RMS/ Max. output power and the latest DSP technology, it dramatically improves every standard sound system and brings real HiFi sound into your car.

Electrical Specifications
– Nominal configuration: five channel class D amplifier with nine channel processor
– Continuous power @ 4 Ohms: 4 x 60 + 1 x 90 Watts
– Continuous power @ 2 Ohms: 4 x 65 + 1 x 160 Watts
– Frequency response: 20 Hz – 20000 Hz
– Total harmonic distortion: 0.03 %
– Damping factor: 50
– Signal-to-noise ratio: 99 dB

Physical Specifications
– Length: 110 mm
– Width: 85 mm
– Height: 35 mm
– Weight: 0.9 kg
