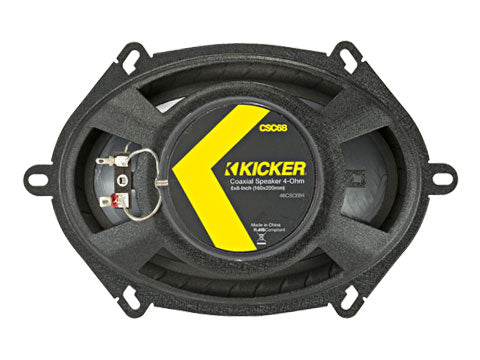

CS Series CSC684
CS-Series 6x8-inch Coaxial Speakers are the perfect way to upgrade your factory system.
CS-Series Coaxials deliver remarkable performance and ultra-clean bass with a heavy-duty motor/magnet structure not...
Availability: In stock
Couldn't load pickup availability
CS Series CSC684
CS-Series 6x8-inch Coaxial Speakers are the perfect way to upgrade your factory system.
CS-Series Coaxials deliver remarkable performance and ultra-clean bass with a heavy-duty motor/magnet structure not found in stock speakers. A stamped-steel frame supports a rigid polypropylene cone with EVC™ (Extended Voice Coil) technology for the best sonic quality. Using zero-protrusion PEI tweeters with neodymium magnets, you get the clarity you need without interfering with factory grilles.
These CS speakers work best with 75 watts of recommended power. See below for more details.
| Speaker Design |
| 2 - way |
| Woofer Size | in [mm] |
| 6x8 [160x200] |
| Tweeter Size | in [mm] |
| 1/2 [13] |
| DC Resistance | ohm |
| 3.5 |
| Peak Power | Watts |
| 225 |
| Continuous Power | Watts, RMS |
| 75 |
| Sensitivity [SPLo] | dB @ 1W, 1m |
| 90 |
| Effective Frequency Range | Hz |
| 45-20k |
| Mounting Hole Diameter | in [mm] |
| 5 x 7 3/16 [126x182] |
| Top Mount Depth | in [mm] |
| 3/8 [9] |
| Bottom Mount Depth | in [mm] |
| 2 3/16 [56] |
| Tweeter Protrusion | in [mm] |
| 0 |
| Grilles |
| No |
| Tweeter Magnet Material |
| Neodymium |
| Tweeter Dome Materia |
| PEI [polyether imide |
| Tweeter Design |
| Balanced dome |
| Woofer Cone Material |
| Polypropylene |
| Woofer Surround Material |
| Polyester foam |
