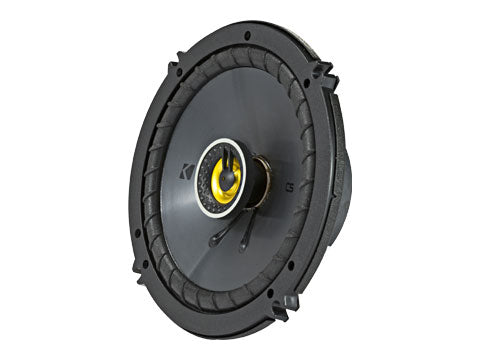

CS Series CSC654

CS-Series 6-1/2-inch Coaxial Speakers are the perfect way to upgrade your factory speakers.

CS-Series Coaxials deliver remarkable performance and ultra-clean bass with a heavy-duty motor/magnet structure not found in stock speakers. The stamped-steel framework supports a rigid polypropylene cone with EVC™ (Extended Voice Coil) technology for the best sonic quality. Using zero-protrusion PEI tweeters with neodymium magnets, you get the clarity you need without interfering with factory grilles.

These CS speakers work best with 100 watts of recommended power. See below for more details.

Fits nearly every car made
Zero-protrusion tweeters to fit nearly any factory depth
Woofer EVC™ (Extended Voice Coil) tech assists with precise linear excursion
UV-treated poly-foam surround resists heat or direct sunlight
Large woofer magnet in a heavy-duty motor for ultra-clean bass
PEI-tweeter construction provides superb clarity
Neodymium tweeter magnets allow for increased volume in high frequencies
Steel mesh grilles included for speaker protection
Specifications
Speaker Design
2 - way
Woofer Size | in [mm]
6 1/2 [160]
Tweeter Size | in [mm]
1/2 [13]
DC Resistance | ohm
3.3
Peak Power | Watts
300
Continuous Power | Watts, RMS
100
Sensitivity [SPLo] | dB @ 1W, 1m
90
Effective Frequency Range | Hz
40-20k
Mounting Hole Diameter | in [mm]
4 13/16 [123]
Top Mount Depth | in [mm]
3/8 [9]
Bottom Mount Depth | in [mm]
1 11/16 [43]
Tweeter Protrusion | in [mm]
0
Grilles
Yes
Tweeter Magnet Material
Neodymium
Tweeter Dome Materia
PEI [polyether imide
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
