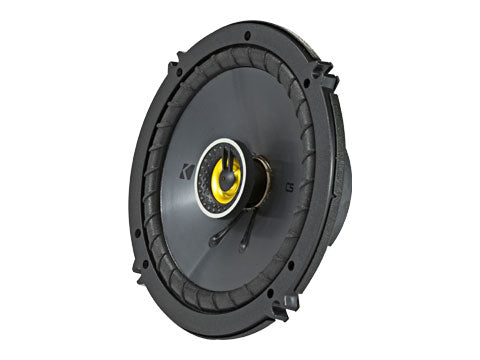

CS Series CSC5
CS-Series 5-1/4-Inch Coaxial Speakers are an excellent upgrade from factory speakers.
A significant upgrade from your factory sound, the stamped-steel framework supports a rigid polypropylene cone...
Availability: Low stock: 1 left
Couldn't load pickup availability
CS Series CSC5
CS-Series 5-1/4-Inch Coaxial Speakers are an excellent upgrade from factory speakers.
A significant upgrade from your factory sound, the stamped-steel framework supports a rigid polypropylene cone with EVC™ (Extended Voice Coil) technology for the best sonic quality. Using zero-protrusion PEI tweeters with neodymium magnets, you get the clarity you need without interfering with factory grilles.
These CS speakers work best with 75 watts of recommended power. See below for more details.
| Speaker Design |
| 2 - way |
| Woofer Size | in [mm] |
| 5 1/4 [130] |
| Tweeter Size | in [mm] |
| 1/2 [13] |
| DC Resistance | ohm |
| 3.4 |
| Peak Power | Watts |
| 225 |
| Continuous Power | Watts, RMS |
| 75 |
| Sensitivity [SPLo] | dB @ 1W, 1m |
| 90 |
| Effective Frequency Range | Hz |
| 45-20k |
| Mounting Hole Diameter | in [mm] |
| 4 1/2 [115] |
| Top Mount Depth | in [mm] |
| 1/4 [7] |
| Bottom Mount Depth | in [mm] |
| 1 3/4 [45] |
| Tweeter Protrusion | in [mm] |
| 0 |
| Grilles |
| Yes |
| Tweeter Magnet Material |
| Neodymium |
| Tweeter Dome Materia |
| PEI [polyether imide |
| Tweeter Design |
| Balanced dome |
| Woofer Cone Material |
| Polypropylene |
| Woofer Surround Material |
| Polyester foam |
