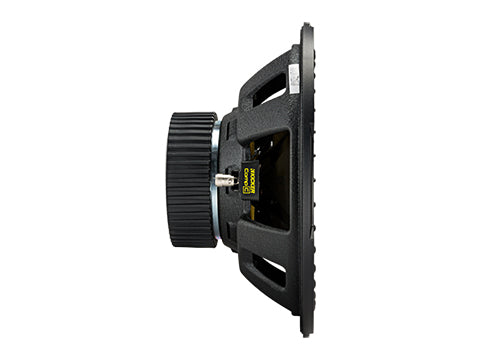

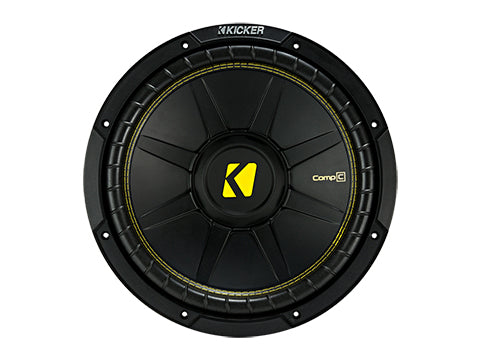

12" CompC 4 Ohm SVC
Perimeter venting keeps the air free-flowing around the motor structure. With a KICKER sub that doesn’t overheat, you get high-performance bass that keeps...
Availability: In stock
Couldn't load pickup availability
12" CompC 4 Ohm SVC
Perimeter venting keeps the air free-flowing around the motor structure. With a KICKER sub that doesn’t overheat, you get high-performance bass that keeps the music pounding.
Features:
*The CompC 12-Inch Subwoofer works best with a sealed or ported enclosure and 300 watts of recommended power. See below for more details.
| Size (IN.,CM) |
| 12, 30 |
| Impedance (OHMS) |
| 4 SVC |
| Max Rec Amplifier Power (WATTS PEAK/RMS)* |
| 600/300 |
| Sensitivity (dB 1w/1m) |
| 88.3 |
| Frequency Response (Hz) |
| 27-500 |
| Mounting Depth (in, cm) |
| 5-3/8, 13.6 |
| Mounting Cutout (in, cm) |
| 11, 27.9 |
| Min Sealed Box Vol (cu. ft, L) |
| 1.25, 35.4 |
| Max Sealed Box Vol (cu. ft, L) |
| 3.5, 99.1 |
| Min Vented Box Vol (cu. ft, L) |
| 1.75, 49.6 |
| Max Vented Box Vol (cu. ft, L) |
| 2.25, 63.7 |
*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.
**Port Volume Excluded.
Due to continual developement, product, and specifications are subject to change without notice. Stillwater Designs and it's agents are not responsible for typographical errors.
