Introducing a motorsports-grade Dual Camera recording system with hide-a-way control box for stealth installations in motorcycles, side-by-sides/UTV's, ATV's, watercraft & more.
*Operating temperature rated at...
Availability: Low stock: 2 left
Couldn't load pickup availability
Introducing a motorsports-grade Dual Camera recording system with hide-a-way control box for stealth installations in motorcycles, side-by-sides/UTV's, ATV's, watercraft & more.
*Operating temperature rated at -20℃ to 60℃

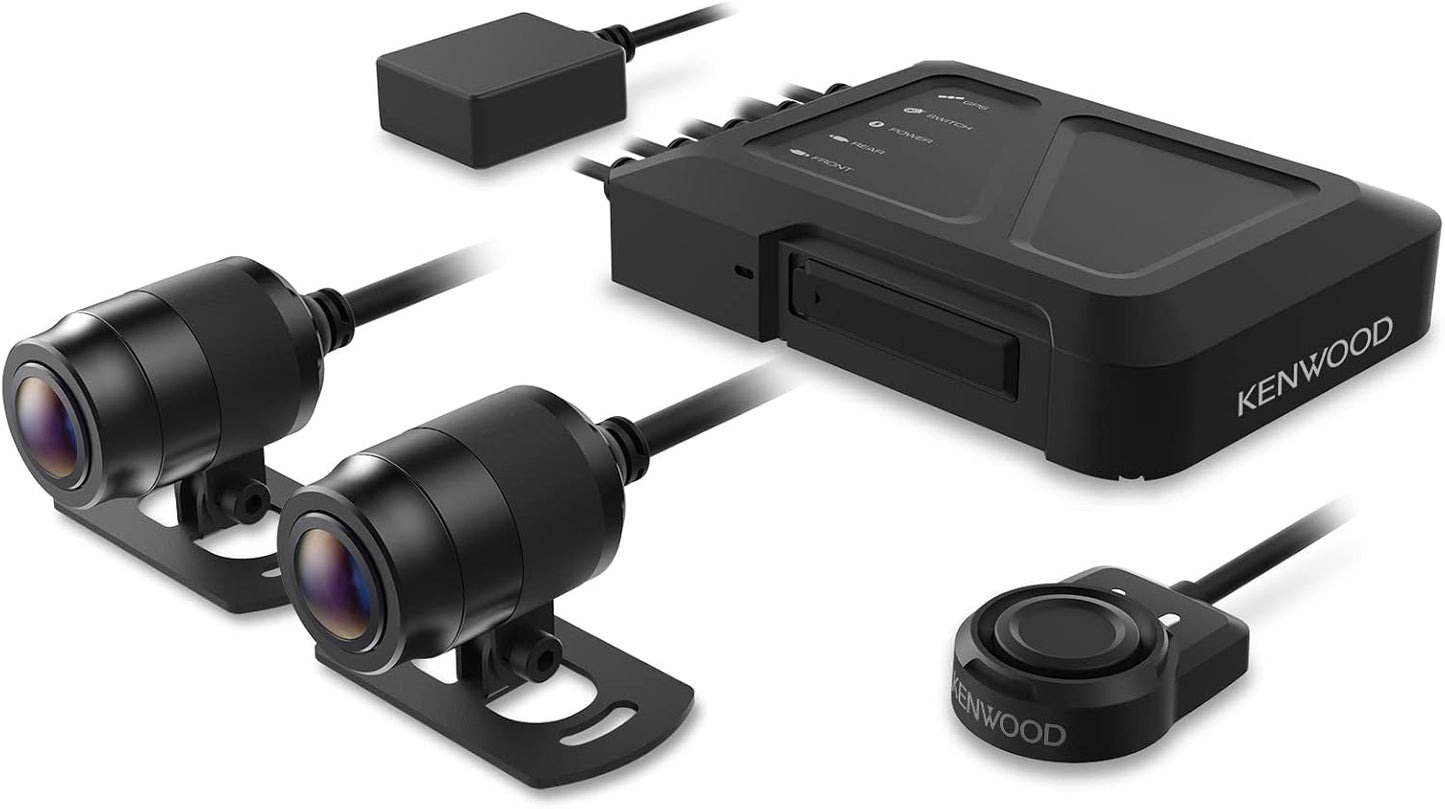

Motorsports Dual CAM Recording SystemSTZ-RF200WD
Full HD Recording
Front & Rear View
Recording
HDR
(High Dynamic Range)
EIS
(Electronic Image Stabilisation)
3-axis G-Sensor
& GPS
Waterproof
Dustproof
WIRELESS Link
Compact Design
Optional Extension Cables
Captures clear video from both directions.
The STZ-RF200WD includes 2 cameras: 1 to record in front of your vehicle and 1 to record behind your vehicle, all at the same time.
Both cameras cover a 195° (diagonal) extra wide range field of view.
Built-in HDR easily records clear images in dark or well lit environments without underexposing or overexposing the image, ensuring superior night vision recording.
Bumpy roads and surfaces have met their match! Count on smooth and steady images with effective compensation for camera shakes with its Built-in image stabilisation.
The STZ-RF200WD is equipped with a 3-axis G-Sensor designed to detect a collision and GPS that records speed, latitude, and longitude.
The cameras, GPS, and switch all carry an IP66/67, meaning that they can resist high-pressure, heavy sprays of water. They are also fully sealed against dust entry. The main unit carries an IP55 rating, meaning that it is protected against dust ingress and low pressure water jets.
A 32GB microSD card is included so that you can be ready to catch all of the action right out of the box. The system supports up to a 256GB microSD card (sold separately).
If power is lost, this prevents the recorded video file from being corrupted, as it provides enough power to allow the video file to close properly.
Enables video playback, file transfer, and easy setup via the KENWOOD Motorsports CAM smartphone app (*Device Requirement OS: Android 7.0 or later, OS: iOS 11.0 or later).
Once files are transferred to device, you can easily share recorded videos.
KENWOOD Motorsports CAM Viewer is a desktop software for displaying video recorded with this system. Simply download the installer from https://www.kenwood.com/car/app/kenwood_motorsports_cam_viewer/eng/index.html, then install according to the on-screen instructions.
*PC Requirement
Microsoft Windows 10 (32-Bit / 64-Bit). Mac OS-X 10.14 or later.
Small camera size provides for a stealthy look and easier installation in various locations.
Multi-function control switch for simplified system control.
Cable Length
(Total connected length from main unit)
Optional camera extension cables to enable installation in a larger variety of vehicle types.
STZ-RFCC500
5m Extension Cable
STZ-RFCC300
3m Extension Cable
STZ-RFCC100
1m Extension Cable
| Recording Resolution | 1920 x 1080 (2M) |
|---|---|
| Recording Format | H.264 (MP4) |
| Image Sensor | 1/2.7" CMOS Sensor |
| Frame Rate | 27.5fps |
| Lens | F=2.2 Fixed Focus Lens |
| Lens Viewing Angle | 195° Diagonal (effective angle : 181°) |
| Recording Mode | Continuous, Event, Manual |
| Operating Temperature | -20℃ to 60℃ |
| External Storage | 32GB microSD Included (Supports max 256GB) |
| High Dynamic Range (HDR) | Yes |
| GPS/GLONASS | Yes |
| G-Sensor | Yes |
| Super Capacitor | Yes |
| Electronic Image Stabilisation（EIS) | Yes |
| Audio Recording | Yes |
| Size (W x D x H) | |
| Main Unit | 79 × 104 × 22.5 mm |
| Cameras | 23.5 (Φ) × 34.4 mm |
| GPS/GLONASS Antenna | 27.4 × 33 × 13 mm |
| Control Switch | 25.8 × 36.9 × 9.5 mm |
