XH speakers are precisely designed for High-Resolution audio to create a truly authentic listening experience with every detail and nuance.
High-Resolution Audio is high-quality...
Availability: Low stock: 3 left
Couldn't load pickup availability
XH speakers are precisely designed for High-Resolution audio to create a truly authentic listening experience with every detail and nuance.
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.
| Power Handling | Power Handling | Peak Input Power | 300W | |
|---|---|---|---|---|
| Frequency Response | 43 Hz~40,000 Hz (-10dB) | |||
| CTA Standards | RMS Power | 100Watts RMS | ||
| Impedance | 3Ω | |||
| Sensitivity | 87dB/ W at 1 m | |||
| Frequency Response | 60 Hz~35,000 Hz (-3dB) | |||

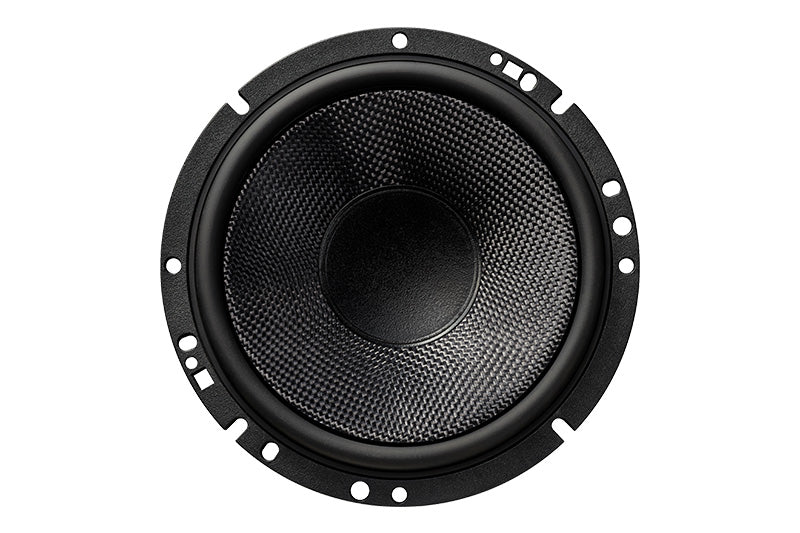

| Woofer | Diaphragm | Glass Fiber | ||
| Size | 165 mm | 6-1/2 inch | ||
| Surround | Rubber | |||

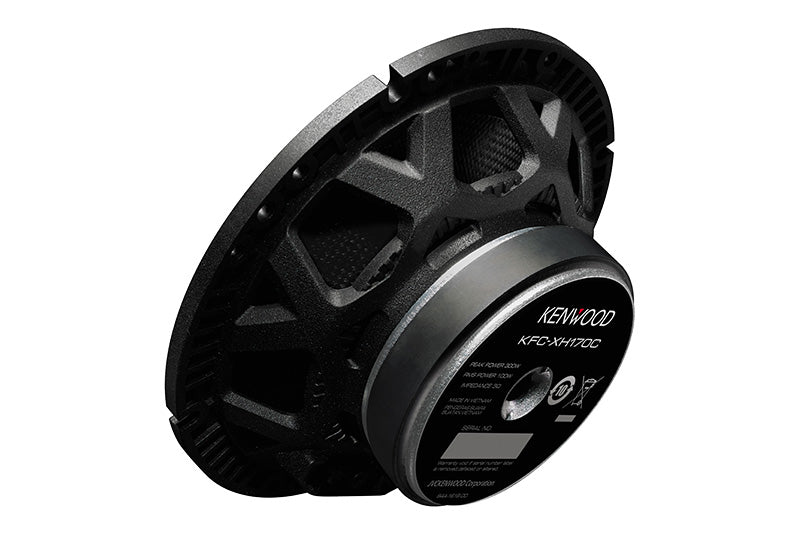

| Magnet | Ferrite | φ90 x t15 | ||

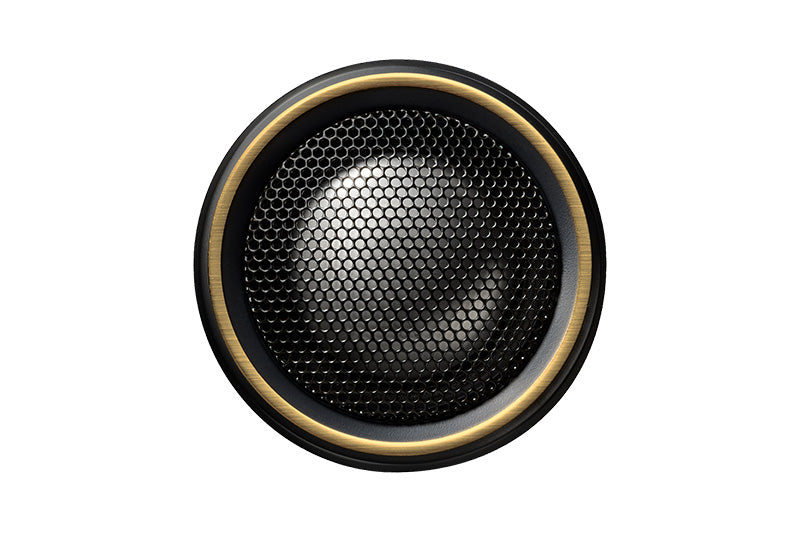

| Tweeter | Diaphragm | Titanium Dome | ||
| Size | 30mm | 1-3/16inch | ||
| Magnet | Neodymium | |||
| Network | Tweeter | HPF | -12dB/oct | |
| Woofer | LPF | -12dB/oct | ||
| Bi-amp connection | 〇 | |||
| Dimension | Woofer | Width | 180 mm | 7-1/16 inch |
| Height | 180 mm | 7-1/16 inch | ||
| Depth | 83.5 mm | 3-5/16 inch | ||
| Cut-out Diameter | 140 mm | 5-1/2 inch | ||
| Height from the mounting surface with Grille | 24.5 mm | 15/16 inch | ||
| Height from the mounting surface without Grille | 11 mm | 7/16 inch | ||
| Mounting Depth | 59 mm | 2-5/16 inch | ||
| Tweeter (Separate) | Width | 53 mm | 2-1/16 inch | |
| Height | 53 mm | 2-1/16 inch | ||
| Depth | 23.8 mm | 15/16 inch | ||
| Cut-out Diameter | 45.5 mm | 1-13/16 inch | ||
| Weight | Net Weight with Grille (Woofer) | 1,010 g | 2.2 lb | |
| Net Weight without Grille (Woofer) | 930 g | 2.1 lb | ||
| Net Weight (Tweeter) | 70 g | 2.5 oz | ||
| Gross Weight | 3.9 kg | 8.6 lb | ||

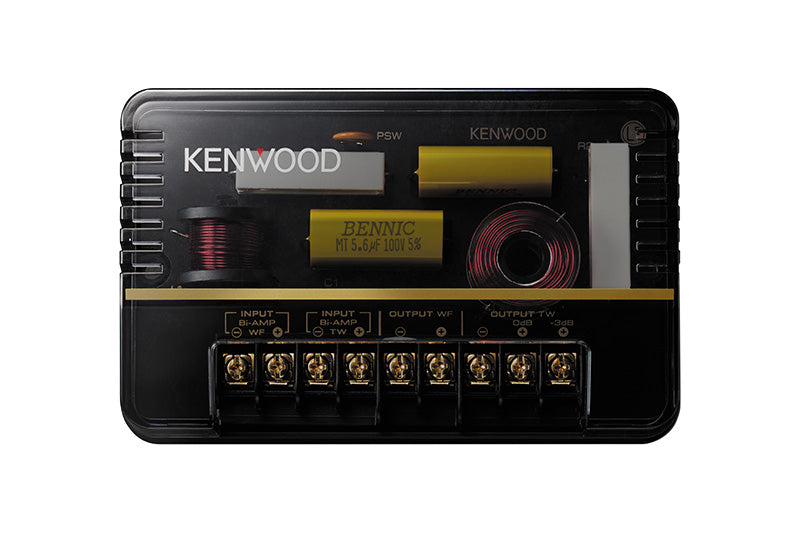

| Accessory | External Network Box 2pcs | |||

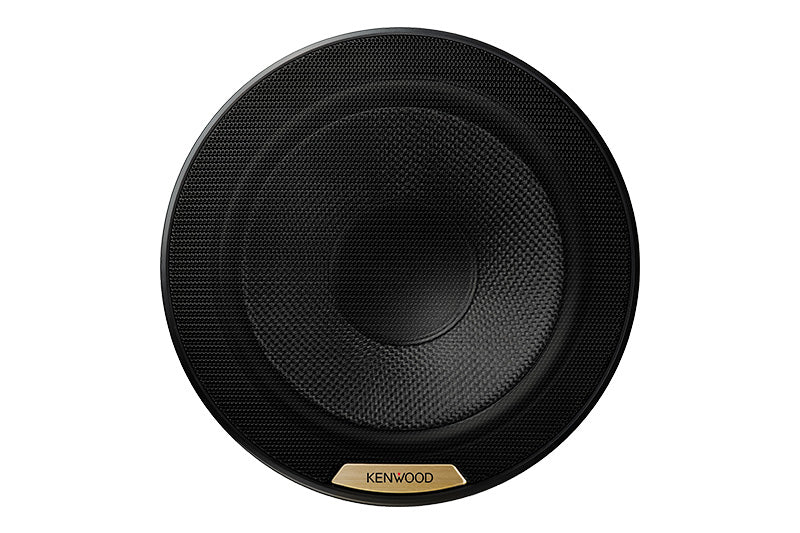

| Grille Assy 2pcs | ||||
| Bracket (WF) 2pcs | ||||
| Bracket (TW) 2pcs | ||||
| Mounting HardWare (TW) 2pcs | ||||
| Adhesive Tape 1set | ||||
| Tapping Screw (φ4x25mm) 12pcs | ||||
| Tapping Screw (φ4x18mm) 8pcs | ||||
| Tapping Screw (φ4x16mm) 4pcs | ||||
| Machine Screw (M4x6mm) 2pcs | ||||
| Speed Nut (φ4) 16pcs | ||||
| Manual | ||||
| Warranty Card | ||||
