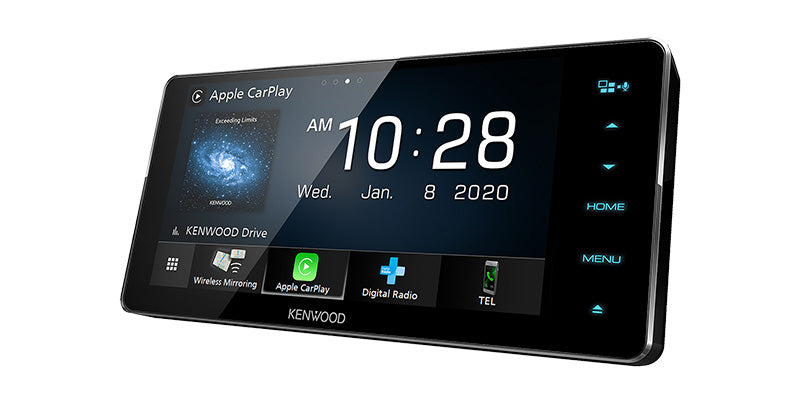

DDX920WDABSAV Receiver with 6.8 inch
High Definition Display
Availability: In stock
Couldn't load pickup availability
DDX920WDABSAV Receiver with 6.8 inch
High Definition Display
By connecting your smartphone and receiver wirelessly,
your driving time will be more fun and convenient.
Apple CarPlay is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver’s display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are also supported. New KENWOOD Wi-Fi receivers now support Apple CarPlay wirelessly (compatible phone required).
*Some features, applications, and services are not available in all areas. For details, see: http://www.apple.com/ios/carplay/
Android Auto via USB Android Auto is a simpler way to use your Android phone in the car. You can enjoy features of your Android phone including Google Maps, Waze and more.
Some features, applications and services are not available in every region.
For details, see: www.android.com/auto
Wireless Mirroring is a groundbreaking solution for seamlessly displaying and controlling your smartphone apps on a KENWOOD receiver screen without cables or a network connection on selected Android devices.
True Mirroring allows you to display and control your smartphone on a KENWOOD receiver screen via USB. You can enjoy your favorite apps on a large display with impressive sound quality. Before starting True Mirroring, just install the free app “Mirroring for KENWOOD” on your smartphone and connect it to the receiver via Bluetooth as well as a USB cable.
USB Mirroring with iPhone have following restrictions:
1) During USB mirroring on iOS device, when a call is received, USB mirroring disconnects and needs to be manually reconnected.
2) USB Mirroring is not compatible with original Music application on the iPhone.
3) USB Mirroring is disconnected when the iPhone goes to the sleep mode.
Up to 5 Bluetooth devices can be paired to the head unit at the same time. You can enjoy audio streaming just by switching the devices among your friends and family.
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
Sound quality enthusiasts will love the playback support of various types of music formats, including compatibility with FLAC files. Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.
| Main Unit | ||
|---|---|---|
| Monitor Section | Picture size | 6.75 inches(diagonal) wide |
| W x H | 152.1 mm x 79.5 mm | |
| Display system | AAS LCD panel | |
| Drive system | TFT active matrix system | |
| Number of pixels | 2,764,800 | |
| 1280H x 720V x RGB | ||
| Effective pixels | 99.99% | |
| Pixel arrangement | RGB striped arrangement | |
| Back lighting | LED | |
| DVD Section | D/A Converter | 24 / 32Bit |
| Audio Decoder | Linear PCM | |
| Dolby Audio | ||
| MP3 / WMA / AAC / WAV / FLAC / Vorbis | ||
| Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV | |
| Wow & Flutter | Below Measurable Limit | |
| Frequency response 96k Sampling | 20 - 44,000 Hz | |
| 48k Sampling | 20 - 22,000 Hz | |
| 44.1k Sampling | 20 - 20,000 Hz | |
| Total harmonic distortion 1kHz | 0.010% | |
| Signal to Noise ratio | 90.5dB (DVD-Video 96k) | |
| Dynamic range | 89dB (DVD-Video 96k) | |
| DISC Format | DVD-Video / VIDEO-CD / CD-DA | |
| Quantifying bit number | 16 / 20 / 24bit | |
| USB I/F Section | USB Standard | USB2.0 High Speed |
| File System | FAT 16/32, exFAT, NTFS | |
| Maximum Power Supply Current | DC5V=1.5A | |
| D/A Converter | 24/32Bit | |
| Audio Decoder | MP3 / WMA / AAC / WAV / FLAC / Vorbis | |
| Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV | |
| Wireless Mirroring Section | Mode | Sink |
| Copyright protection | HDCP2.2 | |
| Touch Control | UIBC | |
| Wi-Fi | IEEE Standard | 802.11 a/b/g/n/ac |
| Frequency Range | Dual Band ( 2.4GHz / 5GHz ) | |
| Channels | Auto(1-11ch) | |
| Auto(149,153,157,161ch) | ||
| Transfer rates (MAX) | 11a: 54 Mbps / 11b: 11 Mbps / | |
| 11g: 54 Mbps / 11n: 300 Mbps / | ||
| 11ac: 867 Mbps | ||
| Output Power 2.4GHz/SISO | 11b:14dBm±2dB / 11g:13dBm±2dB / | |
| 11n(20MHz):12dBm±2dB | ||
| Output Power 5GHz/SISO | 11a:9dBm±2dB / | |
| 11n(20MHz):9dBm±2dB / 11n(40MHz):8dBm±2dB / | ||
| 11ac(20MHz):9dBm±2dB / 11ac(40MHz):8dBm±2dB / 11ac(80MHz):8dBm±2dB | ||
| Output Power 5GHz/MIMO | 11n(20MHz):11dBm±2dB / 11n(40MHz):11dBm±2dB / | |
| 11ac(20MHz):11dBm±2dB / 11ac(40MHz):11dBm±2dB / 11ac(80MHz):11dBm±2dB | ||
| Bluetooth Section | Technology | Bluetooth Ver5.0 |
| Frequency | 2.402 – 2.480 GHz | |
| RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 | |
| Maximum Communication range | Line of sight approx.10m(32.8ft) | |
| Audio Codec | SBC / AAC / LDAC | |
| Multi Profile Support | Multi Profile | |
| Profile | HFP (V1.7) (Hands Free Profile) | |
| SPP (Serial Port Profile) | ||
| A2DP (Advanced Audio Distribution Profile) | ||
| AVRCP (V1.6) (Audio/Video Remote Control Profile) | ||
| PBAP (Phonebook Access Profile) | ||
| DSP Section | Graphics equalizer | |
| BAND | 13Band | |
| frequency (Hz) (BAND1-13) | 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k | |
| Gain | -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB] | |
| 2Way X'Over | ||
| HIGH PASS FILTER frequency | Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz] | |
| SLOPE | -6/-12/-18/-24[dB/Oct.] | |
| LOW PASS FILTER frequency | 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz] | |
| SLOPE | -6/-12/-18/-24[dB/Oct.] | |
| 3Way X'Over | ||
| HIGH PASS FILTER frequency | 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k | |
| SLOPE | -12/-18/-24[dB/Oct.] | |
| Band PASS FILTER frequency | Through/50/60/70/80/90/100/120/150/180/220/250/300[Hz] | |
| 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/Through | ||
| SLOPE | -12/-18/-24[dB/Oct.] | |
| LOW PASS FILTER frequency | 30/40/50/60/70/80/90/100/120/150/Through[Hz] | |
| SLOPE | -12/-18/-24[dB/Oct.] | |
| Position | ||
| Front / Rear /Subwoofer Delay | 0 - 6.1m (0.01m Step) | |
| Gain | -8 to 0dB | |
| Subwoofer Level | -50 to +10dB | |
| FM | Frequency Range | 87.5MHz - 108.0MHz |
| (Frequency step) | (50kHz) | |
| Usable sensitivity | 9.3dBf | |
| S/N30dB | 0.8μV/75Ω | |
| Quieting sensitivity | 15.2dBf | |
| DIN S/N 46dB | 1.6μV / 75Ohms | |
| Frequency response | 30Hz - 15kHz | |
| (±3.0dB) | ||
| S/N (dB) | 65dB (MONO) | |
| Selectivity | Over 80dB (±400kHz) | |
| Stereo separation | 45dB (1kHz) | |
| AM | Frequency Range | 531kHz - 1701kHz |
| (Frequency step) | (9kHz) | |
| Usable sensitivity | 28dBμ | |
| DAB | Frequency Range | BAND III: 174.928MHz - 239.200MHz |
| Sensitivity | -100dBm | |
| S/N | 90dB | |
| DAB | Connector type | SMB |
| Antenna | Output Voltage | 12V DC |
| Connector | Maximum Current | <100mA |
| Video | Color system of external video input | NTSC/PAL |
| External video input level (Mini jacks) | 1 Vp-p / 75 Ohms | |
| External audio max input level (Mini jacks) | 2 V / 25 kOhms | |
| Video Input level (RCA jacks) | 1 Vp-p / 75 Ohms | |
| Video Output level (RCA jacks) | 1 Vp-p / 75 Ohms | |
| Audio Output level (Mini jacks) | 0.9 V / 10 kOhms | |
| Analog RGB input | - | |
| Audio | Maximum Power Output (Front&Rear) | 50Wx4 |
| Typical Power Output (Front&Rear) | Full Bandwidth Power | |
| (at less than 1%THD) | ||
| 22Wx4 | ||
| Output frequency band | 20 - 88,000Hz | |
| Preout level (V) | 5V / 10kOhms | |
| Preout impedance (Ω) | =< 300 Ohms | |
| Speaker Impedance (Ω) | 4-8 Ohms | |
| General | Operating voltage | 12V DC Car Battery |
| Installation Dimensions WxHxD | 178mm x 100mm x 160mm | |
| Weight Main unit | 2.4 kg | |
