Availability: Out of stock
With the introduction of Direct Replacement Category and the adaptation of Maestro APX Parts, the Receiver is Designed to fit seamlessly into OEM dashboards with retaining OEM receiver controls and features.

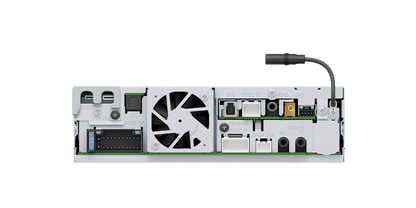

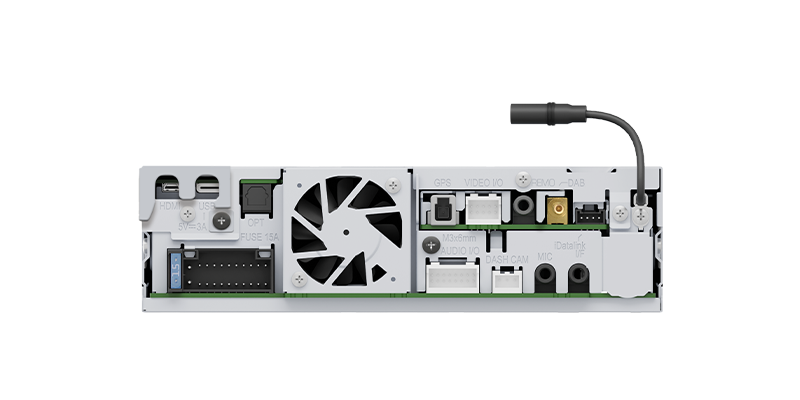

The display and chassis are separated, and the chassis can be placed either vertically or horizontally, allowing for flexible installation in a variety of vehicles.
Vertical Installation
Horizontal Installation
If the cable connecting the Display and Chassis is not long enough, you can solve the problem by connecting at 1.5m extension cable (sold separately).

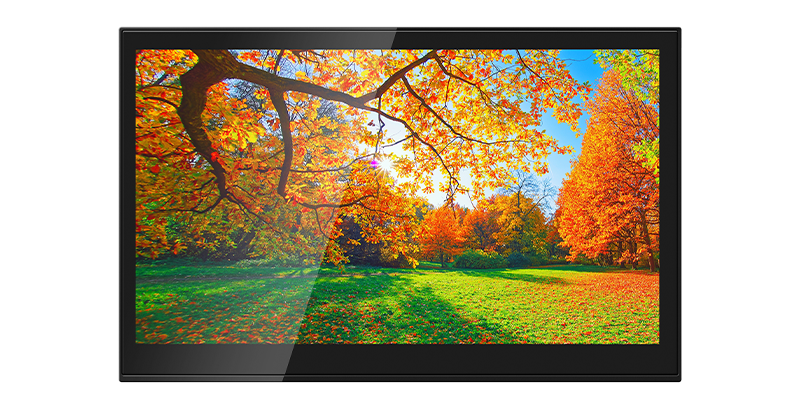

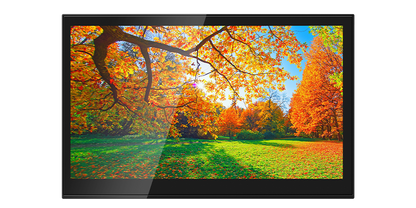

8" Display features an electrostatic capacitive touch panel and HD 1280 x 720 pixel LCD panel with high luminance white LED backlight and superior wide viewing angles.
2.4x Resolution
of the WVGA Display
The AAS display technology of the LCD panel assures you a wider viewing angle of 170° for both horizontal and vertical directions. Together with the protective film which minimizes reflection and glare from sunlight, you can enjoy clear images even from the passenger or back seats.
from Above 85°
from Left 85°
from Right 85°
from Below 85°
A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.
*Some features, applications, and services are not available in all areas.
For details, see: www.apple.com/ios/feature-availability/#applecarplay-applecarplay
You can view and operate both Apple CarPlay and KENWOOD source in the same screen.
KENWOOD's split native screen area
Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.
*Compatible Android phone and compatible active data plan required.
*Some features and devices may not be available in all countries. Subject to availability.
*Selected mobile phones only
You can view and operate both Android Auto and KENWOOD source in the same screen.
KENWOOD's split native screen area
Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.
Display your smartphone screen or other device via an HDMI cable (and third party adapter as applicable) on the 8" monitor. KCA-HD200 optional HDMI cable sold separately.
Display image files stored in your iPhone or Android on the receiver's photo frame widget and/or wallpaper.
High-Resolution Audio is high-quality sound that exceeds CD standard. High-Resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality listening experience. Select KENWOOD receivers now support Hi-Resolution Audio Wirelessly via LDAC. LDAC is an audio coding technology that enables the transmission of High-Resolution Audio over a Bluetooth connection.
*LDAC and LDAC logo are trademarks of Sony Corporation.
* “Hi-Res Audio” Logo and “Hi-Res Audio Wireless” Logo are used under license from Japan Audio Society.
You can fine-tune advanced sound properties to achieve professional audio sound quality in your vehicle. It allows you to set parameters of Q factor, slope, frequency and gain at 14 points separately (Common: 9 / Front: 2 / Rear: 2 / Subwoofer: 1). With adjustments such as high and low shelving filters, more realistic sound can be delivered.
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.
To ensure the best possible sound quality, the receivers use custom-made and carefully selected parts, such as audio quality power supply capacitors, high quality coupling capacitors. These parts are further optimized through meticulous tuning of the component values and circuit paths.
Connect your favorite DSP amplifiers to create the optimal sound space.
You can play back from USB devices audio and video files compressed in various formats.
Compatible with both the Automotive Data Solutions iDatalink Maestro RR and RR2 (sold separately)* for enhanced system vehicle integration. In addition to providing the seamless factory integration experience you have become accustomed to with the RR, these models feature expanded support when connected to the RR2, including an Advanced Driver Assistance Systems (ADAS) Widget and Customizable Accessory Controls. (sold separately).
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.
The optional CMOS-740HD and CMOS-150HD cameras can be connected to the receiver’s front and/or rear camera input, displaying the image in true 1280 x 720 (720P) High Definition on compatible receivers.
WVGA Camera
HD Camera
To enable a smarter driving experience, receivers featuring 4 camera inputs allow for the utmost in convenience, flexibility, and safety. With 4 camera inputs, you can connect a rear camera, side (blind spot) cameras, and a KENWOOD dashboard camera (DRV-N520 sold separately). Alternatively, 4 camera inputs can support several other configurations, including the connection of 2 side cameras, a front HD camera, and a rear HD camera (CMOS-740HD and CMOS-150HD sold separately). Camera switching is available using on screen controls, or automatically for side cameras when an optional iDatalink Maestro RR is connected (supported vehicles only).
RECOMMENDED COMBINATION
DASHCAM + HD REAR CAM + RIGHT CAM + LEFT CAM
RECOMMENDED COMBINATION
FRONT CAM + HD REAR CAM + RIGHT CAM + LEFT CAM
Full HD video recording is available with a DRV-N520 compact windshield mount camera that can record every event in front of you while you drive. High Dynamic Range (HDR) allows flawless recording regardless of extreme bright light or very dark conditions. With a built-in gyro sensor, if an accident occurs it will be saved in a separate portion of memory within the 8GB SD card for viewing. Additional safety and warning features can be activated to avoid frontal collisions or remind you if traffic has moved in front of you.

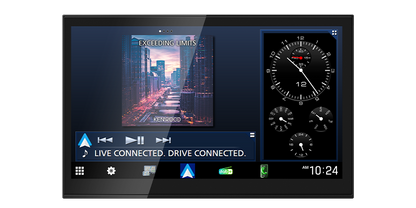

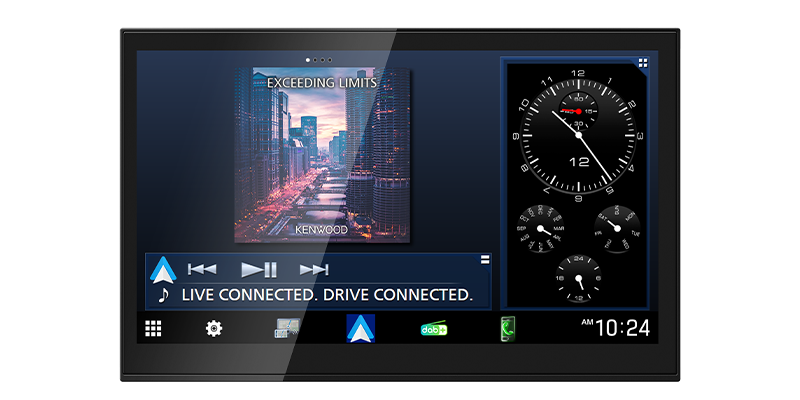

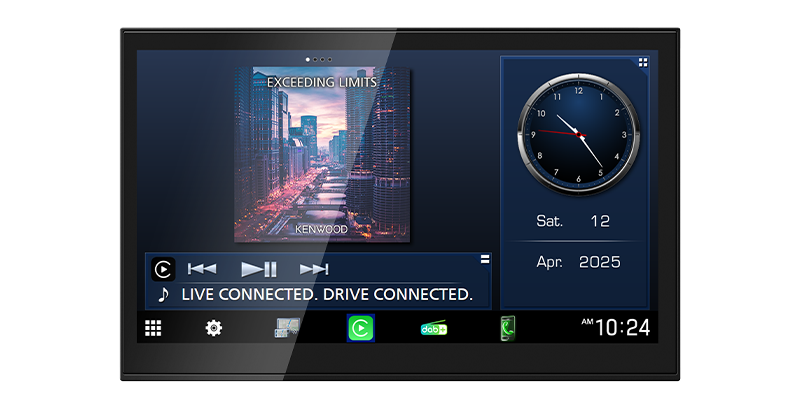

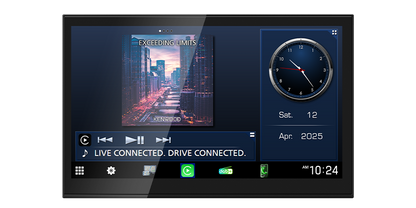

The 8" home screen is composed of a Driving Widget as well as a Source Control Widget overlaid on the background. You can move the Driving Widget from side to side or enlarge the Source Control Widget to optimize the screen for your intuitive operation. The Driving Widget allows selection of a clock, compass, or equalizer setting, etc., while the background allows selection of album art, audio visualizer, or photo.
The gyro sensor accurately captures the vehicle's angle and direction and displays it on the screen even on gravel roads, mountain roads, and rough terrain.
*An optional DAB Antenna is required for use.
USB Type-C cable and USB Type-A adapter are included to the set.Rapidly charge your compatible Android smartphone with the USB port, up to a maximum of 3.0A
This receiver unit can be operated using the remote control.
