Receivers and amplifiers for marine and motor sports applications need to perform in harsh environments exposed to outdoor elements. JVC’s marine and motor sports receivers and amplifiers feature compact size for versatile installation even in tight spaces. Conformal coated main PCBs (printed circuit boards) offer additional protection against moisture and condensation from damaging the product.
A conformal coating is a protective chemical coating to safeguard electronic circuits from harsh environments that may contain moisture or chemical contaminants. It provides a barrier to airborne contaminants from the operating environment, such as salt-spray, thus preventing corrosion.
Separated circuit boards of the Pre-amp and Power-amp sections contribute to a reduction in radiation noise.
The large LPF coil provides stable, high quality sound with no distortion even when playing at high volume.
Incorporates a rotary type HPF and LPF which enables fine adjustment. Compared with fixed type switching, more precise sound adjustment is possible to match your preferences.
Technical Specifications
Product Support

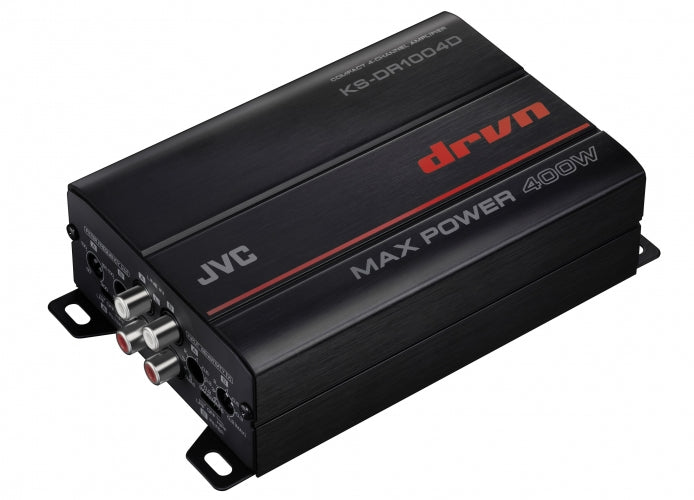

KS-DR1004D
Amplifier
Maximum Power Output
400W
RMS Power Output (4 ohm) [ 1% THD 14.4V]
45W x 4 (20 - 20,000Hz)
RMS Power Output (2 ohm) [ 1% THD 14.4V]
45W x 4 (1,000Hz)
RMS Power Output (Bridged 4 ohm) [ 1% THD 14.4V]
90W x 2 (1,000Hz)
Class
Class-D
Signal-to-Noise Ratio (reference: 1W into 4 ohms), CEA-2006 Compliant
82dB
Load Impedance
Load Impedance Allowance
2 - 8 ohms
HPF
50Hz - 200Hz (-12dB/oct)
LPF
50Hz - 200Hz (-12dB/oct)
RCA Input
Ach L/R, Bch L/R
High Level Input (Speaker Level Input)
Yes
High Level Input Auto Power Control (Signal Sensing Turn On)
Yes
Input Sensitivity
0.2 - 5V
Dimensions (W x H x D)
145 x 45 x 99 mm (5-11/16" x 1-3/4" x 3-7/8")
Weight
0.7kg (1.5lbs)
