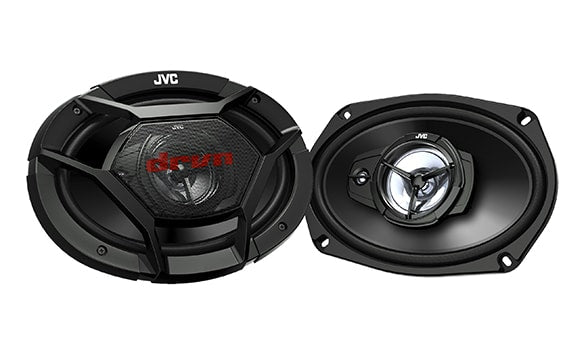

DR Series Speakers
Availability: Low stock: 3 left
Couldn't load pickup availability
DR Series Speakers
Provides detailed high range and smooth mid range. Installable vehicle types are greatly increased thanks to its shorter height.
Grill’s opening ratio is 30% wider than the conventional model, enabling increased durability and clear sound.
Robust and lightweight carbon mica material provides highly responsive, clear and undistorted reproduction.
Rubber Coated Cloth with increased mobility enables high efficiency and improved follow-up to audio signals.
Newly developed small cover significantly reduces areas that interfere with the woofer cone. High-quality sound is assured.
| Woofer | |
|---|---|
| Size | 15 x 23 cm (6" x 9") |
| Diaphragm | Carbon Mica Cone |
| Surround | Hybrid Surround (Rubber & Cloth) |
| Magnet | Ferrite |
| Midrange | |
| Size | 6.6 cm (2-5/8") |
| Type | Cone |
| Diaphragm | Poly-Ether Imide |
| Magnet | Ferrite |
| Tweeter | |
| Size | 1.5 cm (19/32") |
| Type | Dome |
| Diaphragm | Poly-Ether Imide |
| General | |
| Frequency Response | 58 - 21,000Hz |
| Power Handling Capacity (RMS) | 70W |
| Power Handling Capacity (Peak Power) | 500W |
| Impedance | 4 ohms |
| Sound Pressure Level | 88dB |
| Weight | |
| Weight (w.Grille) | 1.07kg (2.4lbs) |
| Weight (w/o Grille) | 0.99kg (2.2lbs) |
| Magnet Mass | 285g (10oz) |
| Mounting Depth | 79 mm (3-1/8") |
