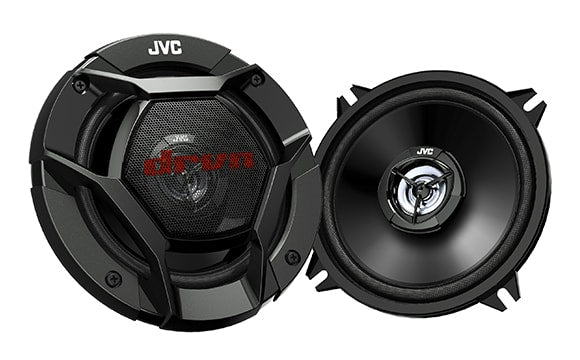

JVC - CS-DR520 - 5" 2-WAY COAXIAL SPEAKERS 40 WRMS - 44mm Depth

JVC - CS-DR520 - 5" 2-WAY COAXIAL SPEAKERS 40 WRMS - 44mm Depth

Regular price $59.00
Regular price Sale price $59.00
Sold out
Tax included.

Balanced Neodymim Tweeter

It provides detailed high range and smooth mid range.

Great Factory Replacement

Installable vehicle...

24 people are viewing this right now

AvailabilityLow stock: 3 left

SKU: 046838073359
Vendor: JVC
Category: Unknown Type
View full product details

Balanced Neodymim Tweeter

It provides detailed high range and smooth mid range.

Great Factory Replacement

Installable vehicle types are greatly increased thanks to its shorter height.

Wide Opening Grill

Grill’s opening ratio is 30% wider than the conventional model, enabling increased durability and clear sound.

Carbon Mica Cone

Robust and lightweight carbon mica material provides highly responsive, clear and undistorted reproduction.

Hybrid Surround

Rubber Coated Cloth with increased mobility enables high efficiency and improved follow-up to audio signals.

Small Design Tweeter Cover

Newly developed small cover significantly reduces areas that interfere with the woofer cone. High-quality sound is assured.

Dimensions


Technical Specifications

Woofer
Size
13 cm (5-1/4")
Diaphragm
Carbon Mica Cone
Surround
Hybrid Surround (Rubber & Cloth)
Magnet
Ferrite
Tweeter
Size
2.5 cm (1")
Type
Balanced
Diaphragm
Poly-Ether Imide
Magnet
Neodimium
General
Power Handling Capacity (Peak power)
260W
Power Handling Capacity (RMS power)
40W
Sound Pressure Level
88dB
Impedance
4 ohms
Frequency Response
85 - 25,000Hz
Weight (w.Grille)
0.51kg (1.2lbs)
Weight (w/o Grille)
0.46kg (1.1lbs)
Magnet Mass
153g (5.4oz)
Mounting Depth
44.5 mm (1-25/32")
