Description

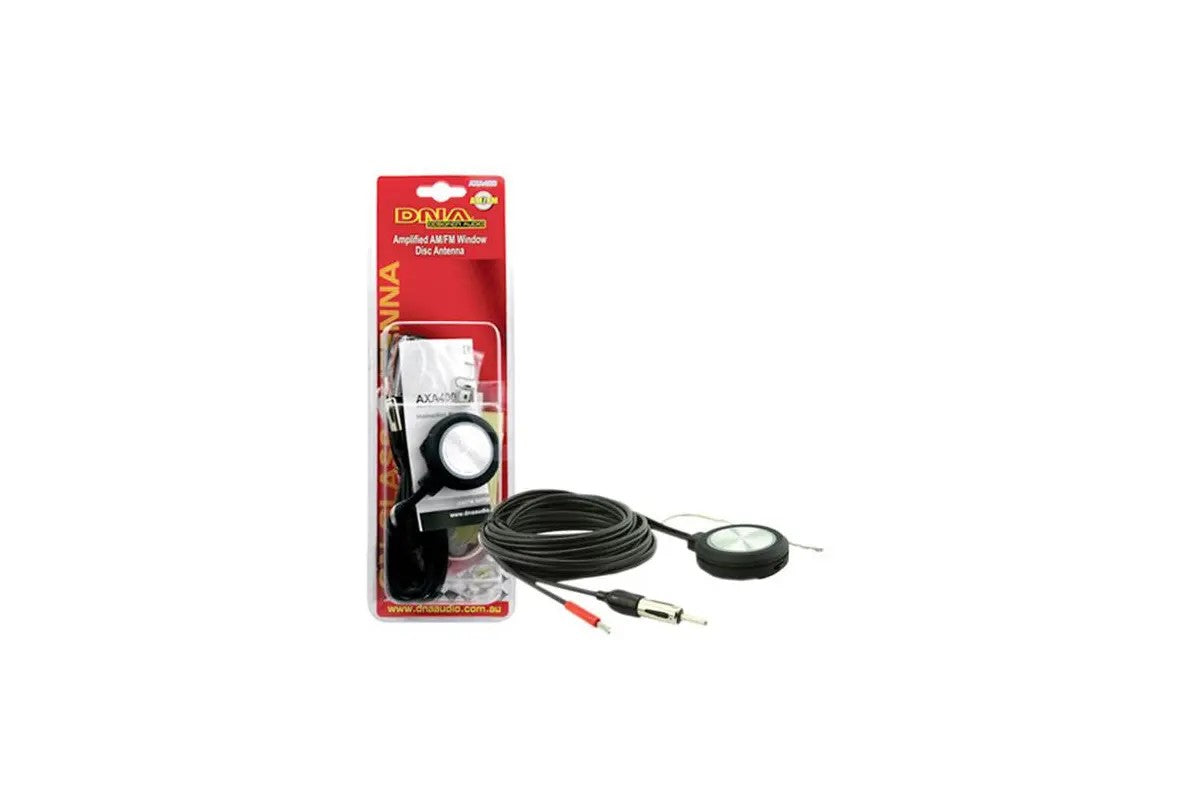

Amplified AM/FM Window Disc Antenna

The DNA amplified AM/FM disc window antenna is designed to be fixed to the inside of a vehicle window. The antenna is easily installed onto your vehicle's windscreen with the adhesive pad and the built-in amplifier boosts signal strength for AM/FM radio reception making this antenna a great replacement for your car antenna.
Features:
Active AM/FM antenna with built in booster amplifier
Illumination (can be deactivated) displays when antenna is functioning
Optimal stereo reception
No drilling required
Easy installation by gluing on front window inside the vehicle


Specifications:
Frequency range - AM/FM (0.145-2) Mhz and (76-108) MHz. Impedance 50 Ohms
AM/FM Gain - 10dB+/-3
Antenna diameter: 50 mm
Antenna thickness: 16 mm
Antenna cable length: 2.9m of low-loss RG178 cable
Voltage: 12VDC
Current consumption: < 100mA at 13.5V (nominal)
Radio connection: Standard Motorola antenna plug
Installation: internal side of front window
Packaging: Heat sealed blister and card with hang hole
