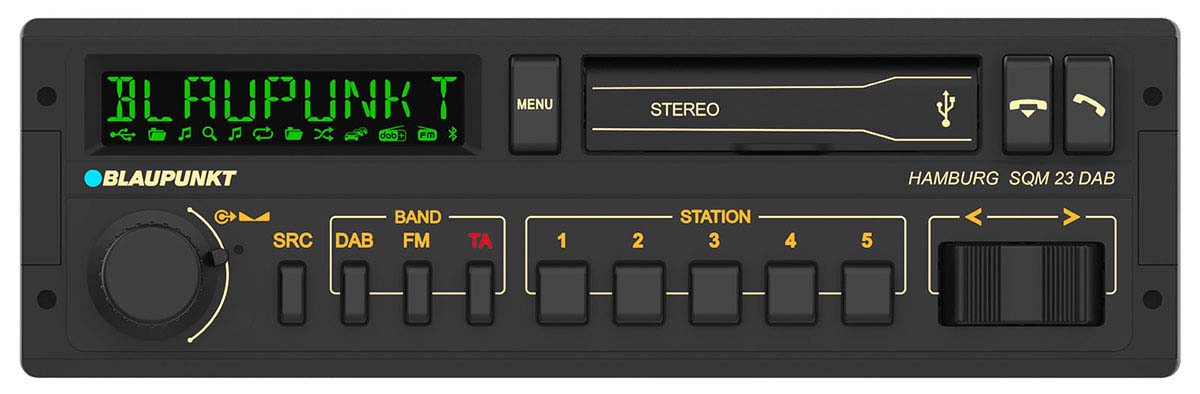

Blaupunkt Hamburg SQM23 DAB Car Radio with Bluetooth DAB/USB/iPod

Reintroducing a Legend: The Blaupunkt Hamburg SQM 23 DAB. Remember the iconic Blaupunkt Hamburg car radio from the 1980s? It became a cult favourite for its user-friendly design and crystal-clear reception. Now, Blaupunkt brings it back for a new generation with the Hamburg SQM 23 DAB!

Classic Design, Modern Features:

• Timeless Look: We kept the original radio's beloved design, complete with modernised multicolour LCD lighting and durable LED key labels.
• Superior Reception: Experience exceptional audio quality with the Blaupunkt Codem FM RDS tuner and DAB digital radio.
• Modern Connectivity: Play music from your Apple devices or USB drives, and even charge your phone. Stream music directly from your phone using Bluetooth audio streaming.
• Voice Assistant Control: Access your phone's voice assistant (Siri, Google Assistant, or Alexa) for hands-free control without picking up your phone.
• Customisable User Experience: Program a button to launch your favourite audio source directly (USB, iPod, or Bluetooth). Settings are saved even after a power disconnect.
• Perfect for Classic Cars: The short installation depth ensures a perfect fit for vehicles with limited space.
• Nostalgic Packaging: The packaging itself is a delightful throwback, designed to match the original radio's aesthetic.

Embrace the legacy of the Hamburg radio and elevate your classic car's sound system with the all-new Hamburg SQM 23 DAB!

Specifications:

• High-End CODEM IV World Tuner
• FM, AM, DAB, DAB+ Tuner with Radio Text
• USB (2x)
• MP2, MP3, WMA, FLAC, M4A (AAC), APE, WAV support
• Apple iPod Support
• Telephony via internal or external microphone
• Audio streaming with title display
• Voice assistant access (e.g. Siri, Google, Alexa)
• Channel Preamp Output plus Sub-Out
• 4x 50 Watt

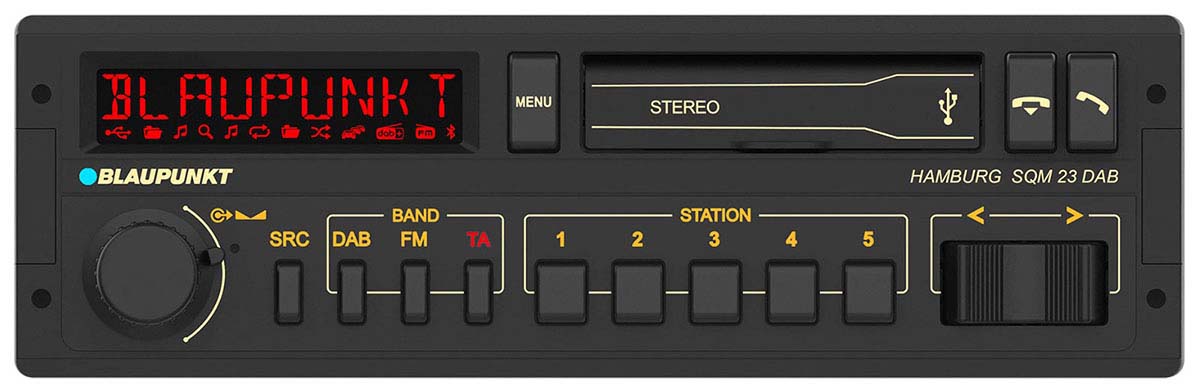

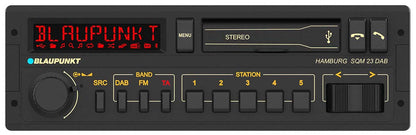

• Multicolour LCD (7 colours)
• DIM function
• Night mode lighting for buttons turned off
• Programmable buttons for favourite stations
• Permanent memory storage
• Small installation depth

Blaupunkt Hamburg SQM 23DAB. Like The Orginal. But Better!

Radio Analogue / Digital

• Tuner Type: High-End Automotive Tuner Blaupunkt CODEM IV
• World Tuner (Switchable)
• Frequency bands: FM, AM, DAB, DAB+
• FM frequency band: 87.5 - 108 MHz
• Frequency band MW: 531- 1602 / 530- 1710 kHz
• Channels (frequency band) DAB / DAB+: 5A- 13F (174.928- 239.200 MHz)
• Number of station memories: 15x FM, 10x AM, 15x DAB
• Channel Display (PS)
• Regional function (REG)
• Program Type ID/Search (PTY)
• Band Scan/ Preset Scan
• Sensitivity (FM): Two levels LO/DX)
• Noise Suppression (FM)
• Alphabetical list of stations DAB

Media Player

• USB Front (Type A)
• USB back (1x Type A, cable)
• Concealed front inputs (USB)
• Compatible formatting: FAT16, FAT32, exFAT
• Maximum storage size: > 128 GB
• Maximum file/folder count: > 30,000
• Playback formats: MP2, MP3, WMA, APE, FLAC, AAC, MP4, WAV
• Display Options: ID3V2 (Title, Artist, Album), Folder, File, Season
• Folder & File Browsing
• iPod, iPhone control (iAP2, Lightning/USB-C): USB front and rear
• Shuffle Folder / Media
• Repeat Title / Folder / All
• Title play function (scan): Time adjustable 4 - 60 seconds

Bluetooth

• Telephone
• Internal microphone
• Connection option ext. microphone
• Accept/reject a call
• Access to the phone book: max. 1000 numbers
• Audio streaming
• Audio Streaming ID3 Track Display: Title, Artist, Album, Playtime
• Access to voice assistants (such as Siri, Google, Alexa)
• Auto wake-up on call: when radio off + ignition on, can be deactivated
• Quick pairing without PIN
• Automatic reconnection: last 5 devices
• Bluetooth Version: V5.0
• Number of paired devices: last 5
• Number at the same time: 1
• Supported Profiles: A2DP, AVRCP, HFP, SPP
• Audio Codecs: AAC, SBC
• Feature availability/support depends on the user phone/app used!

Sound

• Bass / treble adjustment: ± 7 levels
• Source-specific bass / treble adjustment
• Balance/ Fader: ± 7 levels
• Loudness
• Sound Presets: Rock, Pop, Classical
• Speaker Outputs (Channels): 4
• Preamp Outputs (Channels, Voltage): 4 (RCA, < 2V)
• Sub-Out: 2 (RCA, Gain / Frequency variable)
• Max. power: 4 x 50 watts
• RMS power at 14.4 V: 4 x 24 watts (according to DIN 45324)

General

• Display: LCD, negative, anti-reflective, wide-angle, alphanumeric / symbols
• Scrolling (scrolling text): Yes (once/repeatedly)
• Display Lighting Colour: Multicolour, 7 Colours (Green, Yellow, Red, Purple, Blue, Sky Blue, White)
• Lighting colour buttons: Amber, the original Light bulb lighting modelled
• Day/night mode: Yes (manual/via dimmer connection)
• Night design when turned off: buttons
• Brightness: Multi-level, variable
• Time display
• Hour timer (Automatic Shut-down when ACC off): can be deactivated
• Low standby current: Yes (< 3.5 mA )

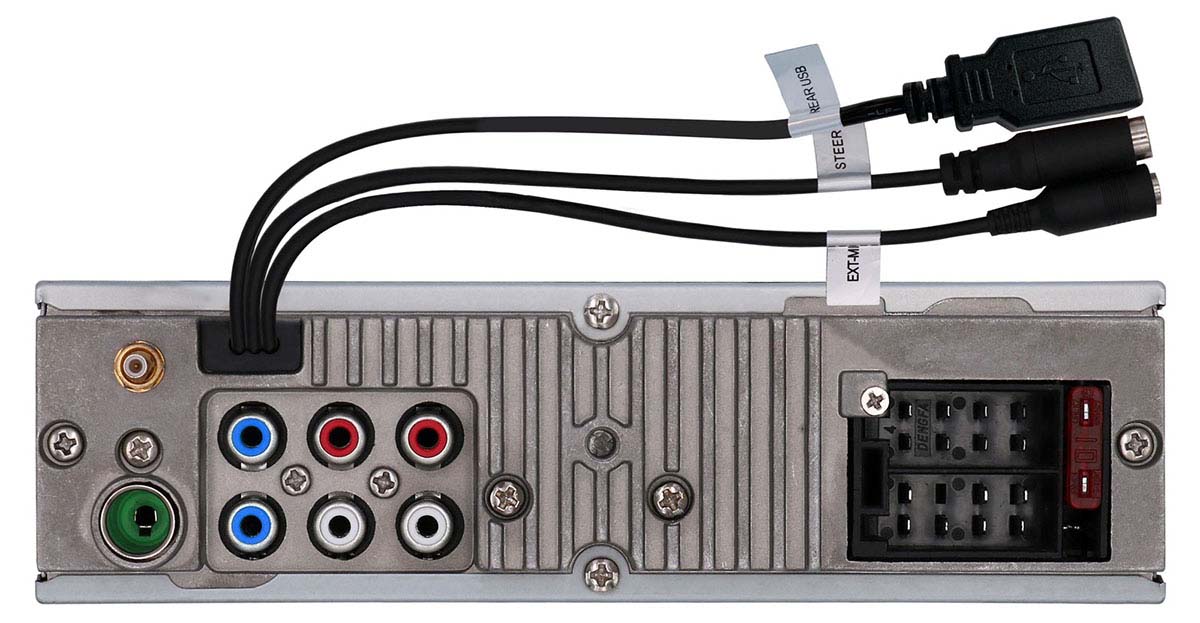

• Antenna inputs: FM DIN / ISO (adapter), DAB SMB (with 12 V phantom power)
• Mute input/phone mute: ground-active
• Ext. hands-free microphone connection
• Remote control: IR sensor for card remote control, compatible with old RC-10 Remote Control
• Steering wheel remote control (SWC): analogue, programmable, pre-programmed
• Variable Scan Time: Yes (4, 8, 12, 16, 60s)
• Key tone: can be deactivated
• Control panel type: Fix panel
• Colour panel / décor trim: Black / Black
• Permanent Memory: Settings & Presets
• Weight: approx. 0.65 kg
• Dimensions: 50mm x 178mm x 116mm (H x W x D, body only), 58mm x 187mm x 11mm (H x W x D, front without buttons)
• Operating voltage power consumption: 10.5-14.4 V / < 10A in operation, ACC off after 10 seconds < 3.5 mA

Hamburg SQM23DAB - What's in the box?

Included in the Box

• Instructions
• External BT Microphone
• Unlock tool
• Connection cable (ISO A, B)
• Antenna adapter (DIN/ ISO)
• Note: Does not have cassette player!
