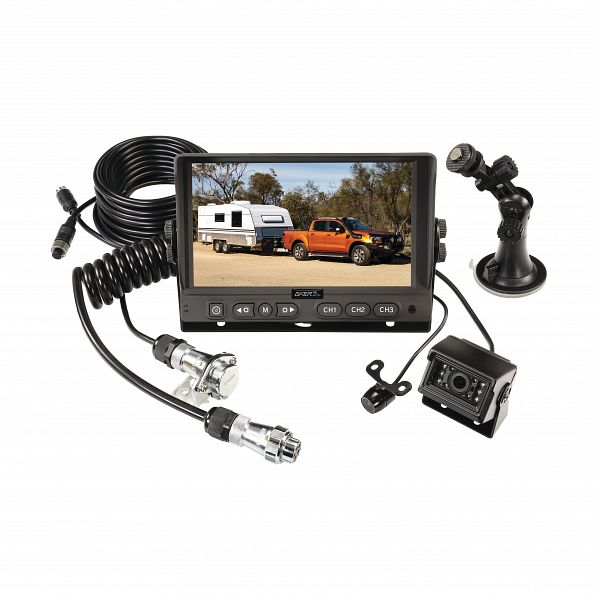

The Gator GRV70TKT Rear View Camera Kit is designed specifically for caravans and trailers. The kit comes supplied with everything required for simple installation and hassle-free operation. It includes a large 7" display which can be mounted on the dashboard or windscreen in the vehicle, as well as two cameras and a quick connect trailer system. The IP67 rated vehicle camera has a compact design for discreet installation and built-in parking guidelines to assist with reversing. The IP68 rated heavy duty trailer camera has built-in IR LEDs for improved night vision and parking guidelines for this camera can be activated via the menu settings in the display. The cameras automatically trigger when the reverse gear is engaged, with the trailer camera taking priority over the vehicle camera when connected. The display features a mirror image setting so the cameras can be used as reverse or rear view, as well as easy channel select buttons so the cameras can be activated on request. The system has a third camera input allowing an additional camera to be added if required and the system is12/24V compatible making it suitable for all types of vehicles.

Features:

Designed specifically for vehicles towing caravans or trailers
7" Colour display with dash and windscreen mounts
IP67 Vehicle camera with built-in parking guidelines
IP68 Heavy duty trailer camera with built-in IR LEDs for improved night vision
Quick connect trailer system for easy connect / disconnect of trailer or caravan
12V / 24V Compatible suitable for light commercial vehicles, 4wds and cars
Cameras can be activated from reverse trigger or used as rear view
Easily select between each camera with the channel buttons on the display
PROLINK II Cable connectors for reliable weatherproof connections
Wired system eliminates interference between the monitor and cameras for clear vision

Specs:

Monitor Specifications:

Display Size: 7"
Resolution: 800x480 RGB
Brightness: 350CD
Aspect Ratio: 16:9
Video Inputs: 3 with Trigger
Format: PAL/NTSC Auto Switching
Mirror Image: Yes
Rear View Delay: 0-15S Selection
Protection: High/Low Voltage & Short Circuit

Vehicle Camera Specifications (Small Camera):

Image Sensor: CMOS
Lens Angle: 120 Degree
IP Rating: IP67
Parking Guidelines: Yes
Connection Type: 4 Pin PROLINK II

Trailer Camera Specifications (Large Camera):

Image Sensor: CMOS
Lens Angle: 120 Degree
IP Rating: IP68
Parking Guidelines: No (Note: monitor has parking line option)
Connection Type: 4 Pin PROLINK II
IR LEDs: 10

Kit Specifications:

Wired or Wireless: Wired
Inclusions:
7" Display Monitor
Windscreen & Dash Mounts
Detachable Sunshade
Surface Mount Vehicle Camera
Heavy Duty Trailer Camera
6M Main Cable (vehicle)
10M Extension Cable (trailer)
Trailer Connection Kit
