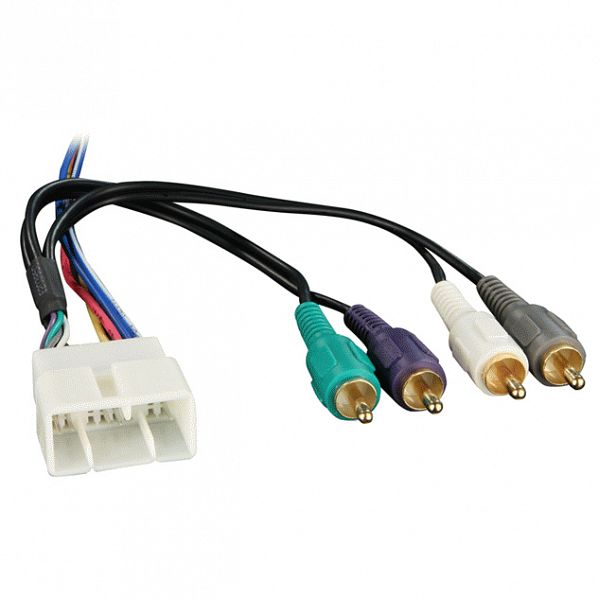

Aerpro - APP0261 Amplifier retention harness to suit Lexus & Toyota - various models

Aerpro - APP0261 Amplifier retention harness to suit Lexus & Toyota - various models

Regular price $34.99
Regular price Sale price $34.99
Sold out
Tax included.

Description:

The APP0261 allows you to retain the factory 4 channel amplified system in your Toyota or Lexus when upgrading to an aftermarket headunit. The harness simply plugs into the...

25 people are viewing this right now

AvailabilityLow stock: 1 left

SKU: 9317114932259
Vendor: Aerpro
Category: Unknown Type
View full product details

Description:

The APP0261 allows you to retain the factory 4 channel amplified system in your Toyota or Lexus when upgrading to an aftermarket headunit. The harness simply plugs into the factory 15 Pin Lexus/Toyota plug behind the original headunit and converts it to 4 RCA plugs which connect into the rear of the aftermarket headunit that as 4 RCA amplifier inputs (front and rear). The harness also provides several bare wires which need to be soldered to the aftermarket radios wiring loom including Constant Power, Accessory Power, Amp Turn On Trigger etc. (wire details can be found in specifications section). When using this harness the Aerpro ISO Plug and Play System will not be compatible.

Features:
Allows aftermarket headunits to integrate with the factory amplifier in your Lexus or Toyota
15 Pin Lexus/Toyota specific plug converts to 4 standard RCA plugs
Bare wire outputs including Constant Power, Accessory Power, Amp Trigger, Illumination etc. which need to be soldered to the aftermarket headunits wiring loom
Aftermarket headunit must have Front and Rear RCA AMP inputs
Simply installs into the vehicle behind the headunit
Wiring configuration can be found in the specifications section
Specs:
HARNESS TYPE: AMPLIFIER RETENTION
PLUG TYPE: VEHICLE SPECIFIC (15 PIN)
CONNECTION TYPE: BARE WIRE & 4x RCA PLUGS
NOTES:
Aftermarket headunit must have Front and Rear Inputs for amplifier
When using this harness the Aerpro ISO Plug and Play System will not be compatible.
WIRING CONFIGURATION (PIN - COLOUR - FUNCTION)
1 - Blue / White - AMP Turn On
2 - Orange - Illumination
3 - Red Accessory
4 - Yellow Constant 12V
5 - Brown / White Mute
6 - White Lt Front AMP input (+)
7 - Grey Rt Front AMP input (+)
8 - Blue Power Antenna
9 - Not Used N/A
10 - Brown - Telephone Mute
11 - Black - Ground
12 - Black / White - Signal Ground
13 - Brown / Yellow - Beep
14 - Green - Left Rear AMP input (+)
15 - Purple - Right Rear AMP input (+)

Vehicles known to work with this product:
SC300, SC400 1991-2000
Toyota Soarer 1991-2000
Lexus ES300 1997-2000
Lexus ES300 1992-1996
