Description

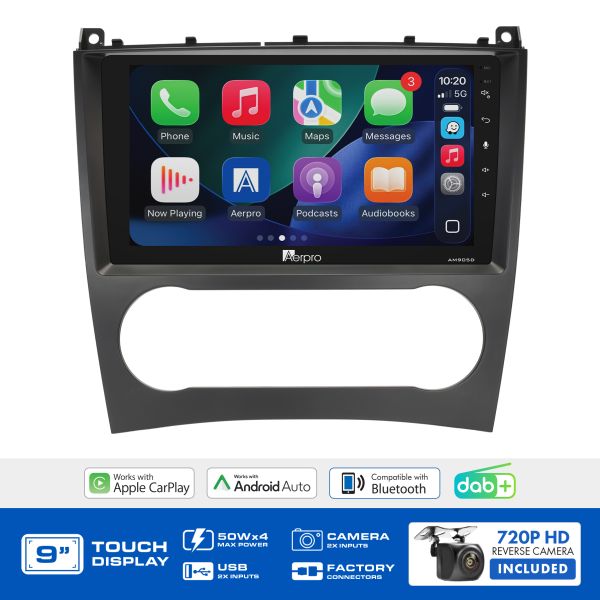

The Aerpro AMDMC4 9" Multimedia Receiver with Wireless Apple CarPlay, Android Auto and DAB+ suits Mercedes C-Class W203 (2004-2006) and CLC CL203 (2008-2011) non-amplified vehicles. Featuring a large 9" capacitive touchscreen display with a crisp 1024x600 resolution, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth V5 for hands-free phone calls & wireless audio streaming, dual rear USB inputs, built-in DAB+ digital radio for crystal-clear sound and a wider range of stations, as well as an AM/FM radio tuner. Sound quality is superb with 50Wx4 max output, 13-band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMDMC4 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls. A universal 720P AHD rear camera is also included in this kit.

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• Requires modification to the plastic factory sub frame.
• Suits non-amplified vehicles only.
• This head unit is sold as a kit which includes:
  • AM905D Multimedia Receiver
  • Matte Black Facia Kit
  • Steering Wheel Control Interface Harness
  • SWC Patch Lead
  • Antenna Adaptor
  • 720P AHD Universal Rear Camera

Features

• Complete Head Unit Upgrade Kit: Includes all the parts required to complete the installation and retain important vehicle features for Mercedes C 2004-2006 , Clc 2008-2011 .
• Vehicle Feature Retention: Retains steering wheel controls.
• Large 9" Capacitive Touchscreen Display: Crisp 1024x600 resolution with smooth, responsive control for easy navigation of maps, media, and menus.
• Wireless Apple CarPlay & Android Auto: Instantly access maps, music, calls, and messages without plugging in your phone, or connect via USB for wired operation and charging.
• Built-In DAB+ Digital Radio: Enjoy crystal-clear digital sound quality and a wider range of stations, plus AM/FM tuning with RDS for all your broadcast preferences.
• Bluetooth Hands-Free Calling & Audio Streaming: Bluetooth V5 with HD Voice support, internal and external microphone options, and full phonebook and audio streaming capability.
• USB Media Playback Support: Play music, videos, and photos directly from a USB drive in popular file formats.
• 720P AHD Universal Rear Camera Included: Improve visibility and confidence when reversing, with an additional camera input available for a front or towing camera.
• High-Power Audio with Advanced Tuning: 4 x 50W Max output, 5-channel 4V RCA preouts, 13-band EQ, time alignment, and subwoofer control for clear, powerful sound.
• Multi-Colour Key Illumination: Customisable 6-colour button lighting to match your vehicle's interior.

Specifications

AMDMC4 HEAD UNIT UPGRADE KIT SPECIFICATIONS:

• Kit Inclusions:
  • [AM905D] https://aerpro.com/am905d Multimedia Receiver
  • Matte Black Facia Kit
  • Steering Wheel Control Interface Harness
  • SWC Patch Lead
  • Antenna Adaptor
  • 720P AHD Universal Rear Camera
• Vehicle Feature Retention:
  • Steering Wheel Controls: Yes
  • Factory Reverse Camera: N/A
  • AUX Input: N/A
  • USB Input: N/A
  • Parking Tones: N/A
  • Factory Amplifier: No
  • Vehicle Menu: N/A
  • Other: N/A

[AM905D] https://aerpro.com/am905d MULTIMEDIA RECEIVER SPECIFICATIONS:

• LCD Display:
  • Size: 9"
  • Resolution: 1024x600
  • Touch Screen: Capacitive
• OS System: Linux
• DIN Size: Fixed Screen Style Trapezoid
• Power Output:
  • MAX Power 4 Ohm : 4CH x 50W
• Media Playback: MP3 / MP4 / MKV / FLAC / Xvid
• Device Ports:
  • USB1 Rear : Apple CarPlay & Android Auto with Charging Function – 5V / 1.5A
  • USB2 Rear : Media with Charging Function – 5V / 1.5A
  • USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
  • Rear A/V Input RCA Type – 3pcs : Yes
  • Composite Video Output: Yes Two
  • Reverse Camera Input: Yes 720P AHD Compatible
  • Second Camera Input: Yes 720P AHD Compatible
• Smartphone Connectivity: CarPlay & Android Auto Wireless and Wired
• Bluetooth:
  • Bluetooth Built-In: Yes A2DP, AVRCP, HFP, PBAP
  • Bluetooth Version: V5
  • Microphone: Internal + External Microphone
  • ID3 Tag/Information Artist, Album, Song : Yes
  • HFP Profile: HFP 1.6 HD Voice
• Tuner:
  • DAB: Yes
  • AM/FM # of Presets : AM 12 / FM 18
  • FM Frequency Span MHz : 87.5–108.0MHz 0.05MHz Step
  • AM Frequency Span KHz : 522–1710KHz 9KHz Step
  • RDS: Yes
• RCA Preamp Outputs:
  • RCA Preamp Output: 4V, 5 Channel – 3 Pair Front / Rear / Subwoofer
  • Subwoofer Level Control: Yes
  • Preamp Voltage: 4V p-p
• Tone Control:
  • 13-Band EQ: 32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K
  • Loudness: Yes
  • LPF – Frequencies Sub : Yes
  • Preset EQs: 6+2 Custom
  • Time Alignment: Yes
• Other Features:
  • Steering Wheel Control: Yes, with Aerpro SWC Adaptor
  • OSD Language: English
  • LED Colour Buttons / Keys : 6-Colour Options Red, Yellow, Green, Blue, Purple, White
• Inclusions:
  • 9" Fixed Headunit Trapezoid
  • Mounting Hardware Screws
  • Wiring Harness with ISO Connection
  • AV, USB and Camera Harnesses
  • DAB Antenna
  • 3 Wire Learning SWC Lead
  • External Microphone with Mount
  • GPS Antenna with Adhesive Pad
  • QR Digital Manual Leaflet

AHD Camera Specifications:

• Inclusions:
  • 720P AHD Universal Rear Camera wired
• Mount Type: Surface Mount
• Camera Type: Rear / Reverse
• Image Sensor: Sony 225, 1/3 CMOS AHD
• Lens Angle: 150 Degree

IMPORTANT INFORMATION:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• Requires modification to the plastic factory sub frame.
• Suits non-amplified vehicles only.
