Description

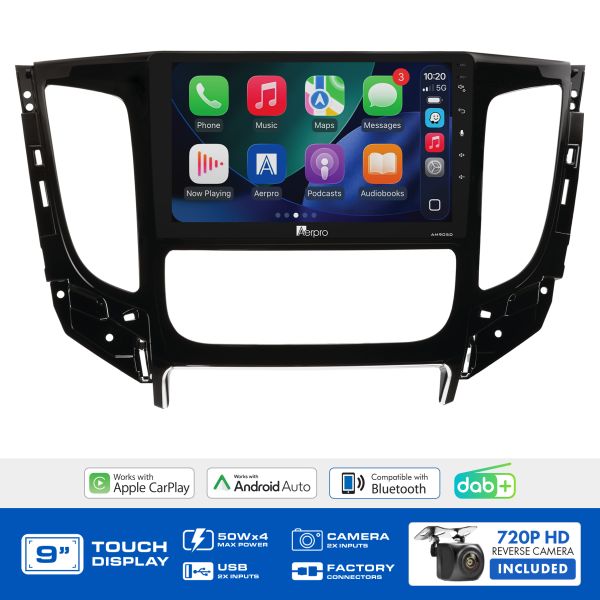

The Aerpro AMDMB8 9" Multimedia Receiver with Wireless Apple CarPlay, Android Auto and DAB+ suits Mitsubishi Triton MQ (2016-2018) non-amplified vehicles with auto climate control.Featuring a large 9" capacitive touchscreen display with a crisp 1024x600 resolution, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth V5 for hands-free phone calls & wireless audio streaming, dual rear USB inputs, built-in DAB+ digital radio for crystal-clear sound and a wider range of stations, as well as an AM/FM radio tuner. Sound quality is superb with 50Wx4 max output, 13-band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMDMB8 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls, USB input and factory reverse camera (if equipped). A universal 720P AHD rear camera is also included in this kit.

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• Suits non-amplified vehicles with auto climate control only.
• Reverse Camera Retention uses the reverse camera input of the head unit.
• USB Input Retention uses the USB input on the rear of the head unit. The kit comes supplied with 2x USB adaptors due to vehicle variances, only one will be required for installation and only one USB input will be retained.
• This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.
• This head unit is sold as a kit which includes:
  • AM905D Multimedia Receiver
  • Black Facia Kit
  • Steering Wheel Control Interface Harness
  • SWC Patch Lead
  • Camera Retention Adaptor
  • USB Retention Adaptors (only one USB is retained)
  • 720P AHD Universal Rear Camera

Features

• Complete Head Unit Upgrade Kit: Includes all the parts required to complete the installation and retain important vehicle features for Mitsubishi Triton 2016-2018 - Auto Climate / Non-Amplified.
• Vehicle Feature Retention: Retains steering wheel controls including phone button , USB input if equipped and factory reverse camera if equipped .
• Large 9" Capacitive Touchscreen Display: Crisp 1024x600 resolution with smooth, responsive control for easy navigation of maps, media, and menus.
• Wireless Apple CarPlay & Android Auto: Instantly access maps, music, calls, and messages without plugging in your phone, or connect via USB for wired operation and charging.
• Built-In DAB+ Digital Radio: Enjoy crystal-clear digital sound quality and a wider range of stations, plus AM/FM tuning with RDS for all your broadcast preferences.
• Bluetooth Hands-Free Calling & Audio Streaming: Bluetooth V5 with HD Voice support, internal and external microphone options, and full phonebook and audio streaming capability.
• USB Media Playback Support: Play music, videos, and photos directly from a USB drive in popular file formats.
• 720P AHD Universal Rear Camera Included: Improve visibility and confidence when reversing, with an additional camera input available for a front or towing camera.
• High-Power Audio with Advanced Tuning: 4 x 50W Max output, 5-channel 4V RCA preouts, 13-band EQ, time alignment, and subwoofer control for clear, powerful sound.
• Multi-Colour Key Illumination: Customisable 6-colour button lighting to match your vehicle's interior.

Specifications

AMDMB8 HEAD UNIT UPGRADE KIT SPECIFICATIONS:

• Kit Inclusions:
  • [AM905D] https://aerpro.com/am905d Multimedia Receiver
  • Black Facia Kit
  • Steering Wheel Control Interface Harness
  • SWC Patch Lead
  • Camera Retention Adaptor
  • USB Retention Adaptors only one USB is retained
  • 720P AHD Universal Rear Camera
• Vehicle Feature Retention:
  • Steering Wheel Controls: Yes including phone button
  • Factory Reverse Camera: Yes if equipped
  • AUX Input: N/A
  • USB Input: Yes if equipped, only one USB is retained
  • Parking Tones: N/A
  • Factory Amplifier: No
  • Vehicle Menu: N/A
  • Other: N/A

[AM905D] https://aerpro.com/am905d MULTIMEDIA RECEIVER SPECIFICATIONS:

• LCD Display:
  • Size: 9"
  • Resolution: 1024x600
  • Touch Screen: Capacitive
• OS System: Linux
• DIN Size: Fixed Screen Style Trapezoid
• Power Output:
  • MAX Power 4 Ohm : 4CH x 50W
• Media Playback: MP3 / MP4 / MKV / FLAC / Xvid
• Device Ports:
  • USB1 Rear : Apple CarPlay & Android Auto with Charging Function – 5V / 1.5A
  • USB2 Rear : Media with Charging Function – 5V / 1.5A
  • USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
  • Rear A/V Input RCA Type – 3pcs : Yes
  • Composite Video Output: Yes Two
  • Reverse Camera Input: Yes 720P AHD Compatible
  • Second Camera Input: Yes 720P AHD Compatible
• Smartphone Connectivity: CarPlay & Android Auto Wireless and Wired
• Bluetooth:
  • Bluetooth Built-In: Yes A2DP, AVRCP, HFP, PBAP
  • Bluetooth Version: V5
  • Microphone: Internal + External Microphone
  • ID3 Tag/Information Artist, Album, Song : Yes
  • HFP Profile: HFP 1.6 HD Voice
• Tuner:
  • DAB: Yes
  • AM/FM # of Presets : AM 12 / FM 18
  • FM Frequency Span MHz : 87.5–108.0MHz 0.05MHz Step
  • AM Frequency Span KHz : 522–1710KHz 9KHz Step
  • RDS: Yes
• RCA Preamp Outputs:
  • RCA Preamp Output: 4V, 5 Channel – 3 Pair Front / Rear / Subwoofer
  • Subwoofer Level Control: Yes
  • Preamp Voltage: 4V p-p
• Tone Control:
  • 13-Band EQ: 32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K
  • Loudness: Yes
  • LPF – Frequencies Sub : Yes
  • Preset EQs: 6+2 Custom
  • Time Alignment: Yes
• Other Features:
  • Steering Wheel Control: Yes, with Aerpro SWC Adaptor
  • OSD Language: English
  • LED Colour Buttons / Keys : 6-Colour Options Red, Yellow, Green, Blue, Purple, White
• Inclusions:
  • 9" Fixed Headunit Trapezoid
  • Mounting Hardware Screws
  • Wiring Harness with ISO Connection
  • AV, USB and Camera Harnesses
  • DAB Antenna
  • 3 Wire Learning SWC Lead
  • External Microphone with Mount
  • GPS Antenna with Adhesive Pad
  • QR Digital Manual Leaflet

AHD Camera Specifications:

• Inclusions:
  • 720P AHD Universal Rear Camera wired
• Mount Type: Surface Mount
• Camera Type: Rear / Reverse
• Image Sensor: Sony 225, 1/3 CMOS AHD
• Lens Angle: 150 Degree

IMPORTANT INFORMATION:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• Suits non-amplified vehicles with auto climate control only.
• Reverse Camera Retention uses the reverse camera input of the head unit.
• USB Input Retention uses the USB input on the rear of the head unit. The kit comes supplied with 2x USB adaptors due to vehicle variances, only one will be required for installation and only one USB input will be retained.
• This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.
