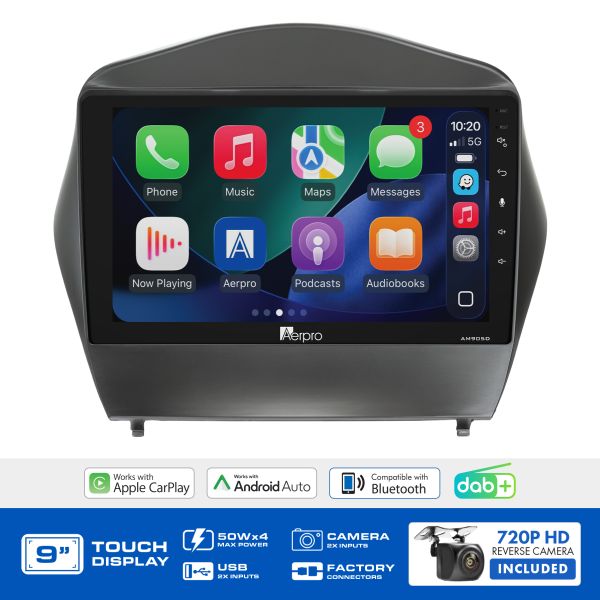

Aerpro - AMDHY21 - 9" Multimedia receiver to suit Hyundai ix35 series 2 2013-2015

Aerpro - AMDHY21 - 9" Multimedia receiver to suit Hyundai ix35 series 2 2013-2015

$899.99
$899.99
Sold out
Tax included.
Description:

The Aerpro AMDHY21 9" Multimedia Receiver with...

26 people are viewing this right now

Availability: Out of stock
SKU: 9317114955449
Vendor: Aerpro
Category: Unknown Type
View full product details
Description:

The Aerpro AMDHY21 9" Multimedia Receiver with Wireless Apple CarPlay, Android Auto and DAB+ suits Hyundai iX35 Series 2 (2013-2015) non-navigation variants. Featuring a large 9" capacitive touchscreen display with a crisp 1024x600 resolution, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth V5 for hands-free phone calls & wireless audio streaming, dual rear USB inputs, built-in DAB+ digital radio for crystal-clear sound and a wider range of stations, as well as an AM/FM radio tuner. Sound quality is superb with 50Wx4 max output, 13-band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMDHY21 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls, factory reverse camera (if equipped) and access to vehicle menu (in selected models). A universal 720P AHD rear camera is also included in this kit.

Important Information:

  • Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
  • Reverse Camera Retention uses the reverse camera input of the head unit.
  • This head unit is sold as a kit which includes:
    • AM905D Multimedia Receiver
    • Matte Black Facia Kit
    • Steering Wheel Control Interface Harness
    • 720P AHD Universal Rear Camera
Features:
  • Complete Head Unit Upgrade Kit: Includes all the parts required to complete the installation and retain important vehicle features for Hyundai Ix35 Series 2 (2013-2015).
  • Vehicle Feature Retention: Retains steering wheel controls, factory reverse camera and vehicle menu (in selected models).
  • Large 9" Capacitive Touchscreen Display: Crisp 1024x600 resolution with smooth, responsive control for easy navigation of maps, media, and menus.
  • Wireless Apple CarPlay & Android Auto: Instantly access maps, music, calls, and messages without plugging in your phone, or connect via USB for wired operation and charging.
  • Built-In DAB+ Digital Radio: Enjoy crystal-clear digital sound quality and a wider range of stations, plus AM/FM tuning with RDS for all your broadcast preferences.
  • Bluetooth Hands-Free Calling & Audio Streaming: Bluetooth V5 with HD Voice support, internal and external microphone options, and full phonebook and audio streaming capability.
  • USB Media Playback Support: Play music, videos, and photos directly from a USB drive in popular file formats.
  • 720P AHD Universal Rear Camera Included: Improve visibility and confidence when reversing, with an additional camera input available for a front or towing camera.
  • High-Power Audio with Advanced Tuning: 4 x 50W Max output, 5-channel 4V RCA preouts, 13-band EQ, time alignment, and subwoofer control for clear, powerful sound.
  • Multi-Colour Key Illumination: Customisable 6-colour button lighting to match your vehicle's interior.
Specs:

AMDHY21 HEAD UNIT UPGRADE KIT SPECIFICATIONS:

  • Kit Inclusions:
    • AM905D Multimedia Receiver
    • Matte Black Facia Kit
    • Steering Wheel Control Interface Harness
    • 720P AHD Universal Rear Camera
  • Vehicle Feature Retention:
    • Steering Wheel Controls: Yes
    • Factory Reverse Camera: Yes
    • AUX Input: No
    • USB Input: No
    • Parking Tones: N/A
    • Factory Amplifier: No
    • Vehicle Menu: Yes (in selected models)
    • Other: N/A

AM905D MULTIMEDIA RECEIVER SPECIFICATIONS:

  • LCD Display:
    • Size: 9"
    • Resolution: 1024x600
    • Touch Screen: Capacitive
  • OS System: Linux
  • DIN Size: Fixed Screen Style (Trapezoid)
  • Power Output:
    • MAX Power (4 Ohm): 4CH x 50W
  • Media Playback: MP3 / MP4 / MKV / FLAC / Xvid
  • Device Ports:
    • USB1 (Rear): Apple CarPlay & Android Auto with Charging Function – 5V / 1.5A
    • USB2 (Rear): Media with Charging Function – 5V / 1.5A
    • USB MAX Capability: FAT32_32GB
  • Aux Inputs / Outputs:
    • Rear A/V Input (RCA Type – 3pcs): Yes
    • Composite Video Output: Yes (Two)
    • Reverse Camera Input: Yes (720P AHD Compatible)
    • Second Camera Input: Yes (720P AHD Compatible)
  • Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
  • Bluetooth:
    • Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
    • Bluetooth Version: V5
    • Microphone: Internal + External Microphone
    • ID3 Tag/Information (Artist, Album, Song): Yes
    • HFP Profile: HFP 1.6 (HD Voice)
  • Tuner:
    • DAB: Yes
    • AM/FM (# of Presets): AM 12 / FM 18
    • FM Frequency Span (MHz): 87.5–108.0MHz (0.05MHz Step)
    • AM Frequency Span (KHz): 522–1710KHz (9KHz Step)
    • RDS: Yes
  • RCA Preamp Outputs:
    • RCA Preamp Output: 4V, 5 Channel – 3 Pair (Front / Rear / Subwoofer)
    • Subwoofer Level Control: Yes
    • Preamp Voltage: 4V p-p
  • Tone Control:
    • 13-Band EQ: 32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K
    • Loudness: Yes
    • LPF – Frequencies (Sub): Yes
    • Preset EQs: 6+2 Custom
    • Time Alignment: Yes
  • Other Features:
    • Steering Wheel Control: Yes, with Aerpro SWC Adaptor
    • OSD Language: English
    • LED Colour (Buttons / Keys): 6-Colour Options (Red, Yellow, Green, Blue, Purple, White)
  • Inclusions:
    • 9" Fixed Headunit (Trapezoid)
    • Mounting Hardware Screws
    • Wiring Harness with ISO Connection
    • AV, USB and Camera Harnesses
    • DAB Antenna
    • 3 Wire Learning SWC Lead
    • External Microphone with Mount
    • GPS Antenna with Adhesive Pad
    • QR Digital Manual Leaflet

AHD Camera Specifications:

  • Inclusions:
    • 720P AHD Universal Rear Camera (wired)
  • Mount Type: Surface Mount
  • Camera Type: Rear / Reverse
  • Image Sensor: Sony 225, 1/3 CMOS AHD
  • Lens Angle: 150 Degree

IMPORTANT INFORMATION:

  • Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
  • Reverse Camera Retention uses the reverse camera input of the head unit.
