Aerpro - AMDHY19 - 9" Multimedia receiver to suit Hyundai santa fe 2006-2009 - non amplified

Aerpro - AMDHY19 - 9" Multimedia receiver to suit Hyundai santa fe 2006-2009 - non amplified

$799.99
$799.99
Sold out
Tax included.
Description:

The Aerpro AMDHY19 9" Multimedia Receiver with...

17 people are viewing this right now

Availability: Out of stock
SKU: 9317114955463
Vendor: Aerpro
Category: Unknown Type
View full product details
Description:

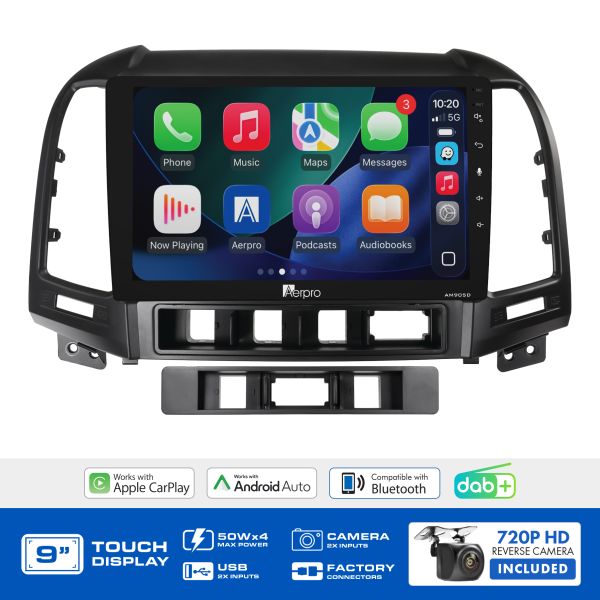

The Aerpro AMDHY19 9" Multimedia Receiver with Wireless Apple CarPlay, Android Auto and DAB+ suits Hyundai Santa Fe (2006-2009) vehicles without factory amplified systems. Featuring a large 9" capacitive touchscreen display with a crisp 1024x600 resolution, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth V5 for hands-free phone calls & wireless audio streaming, dual rear USB inputs, built-in DAB+ digital radio for crystal-clear sound and a wider range of stations, as well as an AM/FM radio tuner. Sound quality is superb with 50Wx4 max output, 13-band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMDHY19 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls. A universal 720P AHD rear camera is also included in this kit.

Important Information:

  • Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
  • Suits vehicles without factory amplified systems only.
  • This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.
  • This head unit is sold as a kit which includes:
    • AM905D Multimedia Receiver
    • Matte Black Facia Kit
    • Steering Wheel Control Interface Harness
    • 720P AHD Universal Rear Camera
Features:
  • Complete Head Unit Upgrade Kit: Includes all the parts required to complete the installation and retain important vehicle features for Hyundai Santa Fe (2006-2009) - Non Amplified.
  • Vehicle Feature Retention: Retains steering wheel controls.
  • Large 9" Capacitive Touchscreen Display: Crisp 1024x600 resolution with smooth, responsive control for easy navigation of maps, media, and menus.
  • Wireless Apple CarPlay & Android Auto: Instantly access maps, music, calls, and messages without plugging in your phone, or connect via USB for wired operation and charging.
  • Built-In DAB+ Digital Radio: Enjoy crystal-clear digital sound quality and a wider range of stations, plus AM/FM tuning with RDS for all your broadcast preferences.
  • Bluetooth Hands-Free Calling & Audio Streaming: Bluetooth V5 with HD Voice support, internal and external microphone options, and full phonebook and audio streaming capability.
  • USB Media Playback Support: Play music, videos, and photos directly from a USB drive in popular file formats.
  • 720P AHD Universal Rear Camera Included: Improve visibility and confidence when reversing, with an additional camera input available for a front or towing camera.
  • High-Power Audio with Advanced Tuning: 4 x 50W Max output, 5-channel 4V RCA preouts, 13-band EQ, time alignment, and subwoofer control for clear, powerful sound.
  • Multi-Colour Key Illumination: Customisable 6-colour button lighting to match your vehicle's interior.
Specs:

AMDHY19 HEAD UNIT UPGRADE KIT SPECIFICATIONS:

  • Kit Inclusions:
    • AM905D Multimedia Receiver
    • Matte Black Facia Kit
    • Steering Wheel Control Interface Harness
    • 720P AHD Universal Rear Camera
  • Vehicle Feature Retention:
    • Steering Wheel Controls: Yes
    • Factory Reverse Camera: N/A
    • AUX Input: N/A
    • USB Input: N/A
    • Parking Tones: N/A
    • Factory Amplifier: No
    • Vehicle Menu: N/A
    • Other: N/A

AM905D MULTIMEDIA RECEIVER SPECIFICATIONS:

  • LCD Display:
    • Size: 9"
    • Resolution: 1024x600
    • Touch Screen: Capacitive
  • OS System: Linux
  • DIN Size: Fixed Screen Style (Trapezoid)
  • Power Output:
    • MAX Power (4 Ohm): 4CH x 50W
  • Media Playback: MP3 / MP4 / MKV / FLAC / Xvid
  • Device Ports:
    • USB1 (Rear): Apple CarPlay & Android Auto with Charging Function – 5V / 1.5A
    • USB2 (Rear): Media with Charging Function – 5V / 1.5A
    • USB MAX Capability: FAT32_32GB
  • Aux Inputs / Outputs:
    • Rear A/V Input (RCA Type – 3pcs): Yes
    • Composite Video Output: Yes (Two)
    • Reverse Camera Input: Yes (720P AHD Compatible)
    • Second Camera Input: Yes (720P AHD Compatible)
  • Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
  • Bluetooth:
    • Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
    • Bluetooth Version: V5
    • Microphone: Internal + External Microphone
    • ID3 Tag/Information (Artist, Album, Song): Yes
    • HFP Profile: HFP 1.6 (HD Voice)
  • Tuner:
    • DAB: Yes
    • AM/FM (# of Presets): AM 12 / FM 18
    • FM Frequency Span (MHz): 87.5–108.0MHz (0.05MHz Step)
    • AM Frequency Span (KHz): 522–1710KHz (9KHz Step)
    • RDS: Yes
  • RCA Preamp Outputs:
    • RCA Preamp Output: 4V, 5 Channel – 3 Pair (Front / Rear / Subwoofer)
    • Subwoofer Level Control: Yes
    • Preamp Voltage: 4V p-p
  • Tone Control:
    • 13-Band EQ: 32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K
    • Loudness: Yes
    • LPF – Frequencies (Sub): Yes
    • Preset EQs: 6+2 Custom
    • Time Alignment: Yes
  • Other Features:
    • Steering Wheel Control: Yes, with Aerpro SWC Adaptor
    • OSD Language: English
    • LED Colour (Buttons / Keys): 6-Colour Options (Red, Yellow, Green, Blue, Purple, White)
  • Inclusions:
    • 9" Fixed Headunit (Trapezoid)
    • Mounting Hardware Screws
    • Wiring Harness with ISO Connection
    • AV, USB and Camera Harnesses
    • DAB Antenna
    • 3 Wire Learning SWC Lead
    • External Microphone with Mount
    • GPS Antenna with Adhesive Pad
    • QR Digital Manual Leaflet

AHD Camera Specifications:

  • Inclusions:
    • 720P AHD Universal Rear Camera (wired)
  • Mount Type: Surface Mount
  • Camera Type: Rear / Reverse
  • Image Sensor: Sony 225, 1/3 CMOS AHD
  • Lens Angle: 150 Degree

IMPORTANT INFORMATION:

  • Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
  • Suits vehicles without factory amplified systems only.
  • This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.
