CS Series CSS68

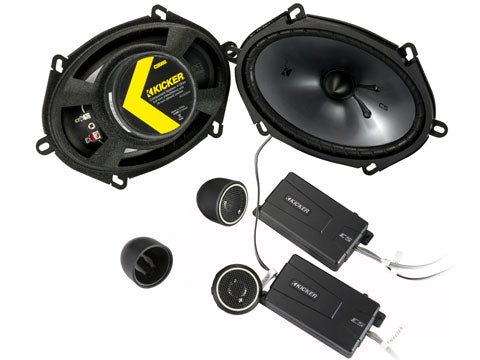

CS-Series 6x8-inch Component Speakers are the perfect factory upgrade when you have a separate woofer and tweeter.
CS-Series components include separate titanium tweeters and two-way crossovers with tweeter level control to let you customize your sound for the best sonic quality. The result is precise control with stunning musical realism. Use the flush, angled or surface-mount tweeter pods to perfect your imaging with a sophisticated new look.
These CS-Series speakers work best with 75 watts of recommended power. See below for more details.
Woofer Size | in [mm] |
6x8 [160x200] |
Tweeter Size | in [mm] |
3/4 [20] |
Dome Material |
Titanium |
Peak Power | [watts] |
225 |
Continuous Power | [watts RMS] |
75 |
Effective Frequency Range | Hz |
40-21k |
Woofer Mounting Hole Diameter | in [mm] |
5 x 7 3/16 [126x182] |
Woofer Bottom Mount Depth | in [mm] |
2 3/16 [56] |
Flush Mounting Tweeter Hole Diameter | in [mm] |
1 9/16 [40] |
Flush Mount Tweeter Depth | in [mm] |
9/16 [14.5] |
High Pass | dB, at Frequency | Hz |
12, 4000 |
Low Pass | dB, at Frequency | Hz |
12, 4000 |
High Frequency Output Attenuation | dB |
0, 3, & 6 |
Bolt-Thru Grilles |
No |
